F-3117X

Overview

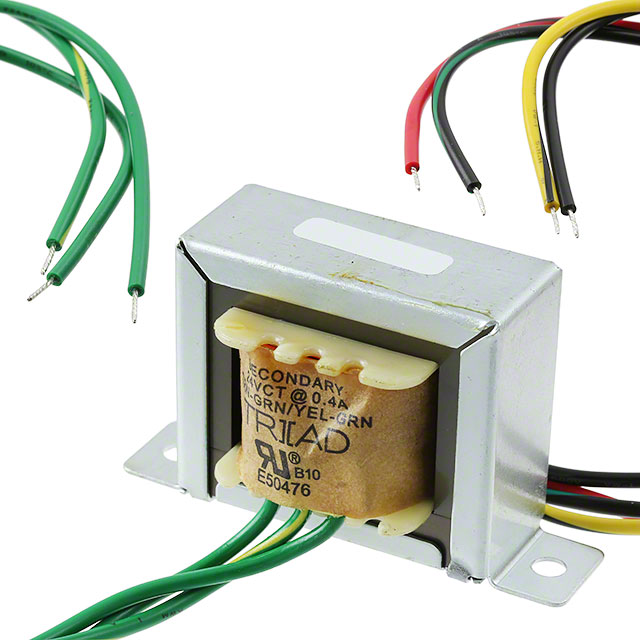

The Triad Magnetics F-3117X is a laminated core industrial power transformer designed for chassis mounting. It features dual primary windings rated for 115 VAC and 230 VAC input, providing a single secondary output of 24.0 VAC at 0.400 A. The unit has a power rating of 9.6 VA and utilizes wire leads for termination. Physical dimensions are 1.5 inches in length, 2.81 inches in width, and 1.63 inches in height, with a weight of approximately 362.87 grams.

Feature Summary

• Laminated core construction for efficient power transfer
• Dual primary winding configuration supporting multiple input voltages
• Chassis mount style with integrated flange for secure installation
• Wire lead termination for direct circuit connection

Applications

• Industrial control panels requiring isolated power supply
• Equipment needing 24V AC control voltage from standard mains
• Chassis-mounted electronic enclosures with space constraints

Procurement Notes

Verify the specific datasheet revision to confirm insulation class and safety certifications such as UL or CE before integration. Ensure the operating environment temperature range aligns with the transformer's thermal ratings. Confirm that the wire lead lengths meet the mechanical layout requirements of the target chassis assembly to avoid strain on connections.

Selection Notes

Select this model when a compact, chassis-mount solution is required for stepping down standard line voltages to 24V AC. The 9.6 VA rating suits low-power control circuits rather than high-current loads. Consider the physical footprint and wire lead orientation during PCB or terminal block layout planning to ensure adequate clearance and accessibility for wiring.

Part Context

This component belongs to the F series of industrial control transformers from Triad Magnetics. The series is characterized by robust laminated core designs intended for reliable operation in demanding industrial environments. These transformers are typically used to provide isolated power for control logic, relays, and indicator circuits within larger electrical systems.

Replacement Considerations

Direct substitutes may include other Triad Magnetics models within the F series that match the 9.6 VA rating and 24V secondary output. Verify pinout compatibility and physical dimensions if swapping with competitors. Ensure any replacement maintains the same voltage isolation ratings and safety approvals required by the original design specifications.
