Product Detailed Parameters
- Description：PWR XFMR LAMINATED 3.8VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：600mA
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：3.8VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：60.32mm L x 34.93mm W
- Height - Seated (Max)：34.93mm
- Voltage - Isolation：2500Vrms
- Weight：0.37 lb (167.83 g)
Download product information
Overview

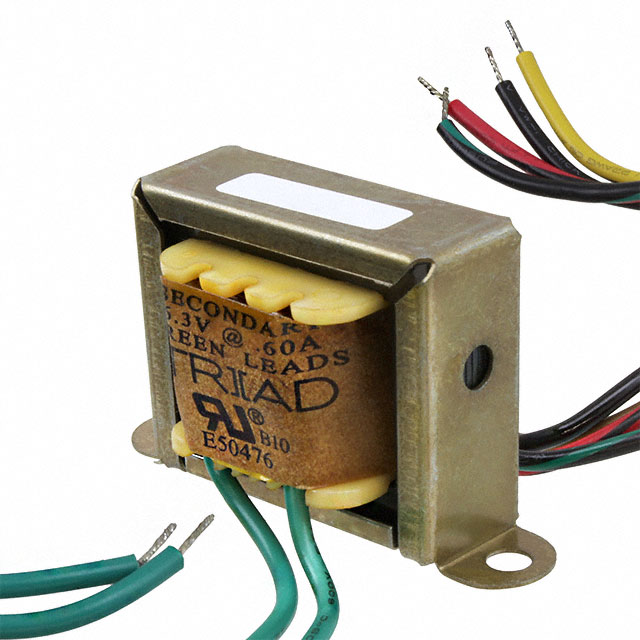

The Triad Magnetics F-313X is a chassis mount power transformer designed for industrial applications. It features a laminated core construction and operates at standard frequencies of 50Hz or 60Hz. The unit provides an isolation rating with a primary voltage configuration of 115V or 230V. The secondary output delivers 6.3VCT (center-tapped) at a current capacity of 0.600A, resulting in a total power rating of 3.8VA. The component includes leads for direct connection and is intended for mounting on equipment chassis.
Feature Summary
- Chassis mount design with integrated leads
- Laminated core construction for efficient operation
- Single secondary winding with center tap
- Industrial-grade isolation transformer
Applications
- Industrial control panels
- Power supply circuits
- Rectifier and filter circuit integration
- Equipment requiring isolated low-voltage AC power
Procurement Notes
Verify the specific datasheet version to confirm lead length and insulation class requirements. Ensure the input voltage matches the 115V/230V specification before installation. Confirm that the 3.8VA rating meets the load demands of the target circuit. Check for any regional compliance certifications required for the end application environment.
Selection Notes
Select this model when a compact, chassis-mounted solution is required for low-power industrial systems. The 6.3VCT output suits applications needing a split-phase supply for rectification. Consider the physical dimensions and lead configuration for panel layout. Verify thermal management needs as the unit relies on ambient cooling within the chassis enclosure.
Part Context
This component belongs to the Triad Magnetics F Series of power transformers. The series offers various configurations for different voltage and power requirements. The F-313X specifically addresses the need for small form-factor isolation in industrial settings. It complements other models in the lineup by providing a standardized 3.8VA option with center-tapped secondary capabilities.
Replacement Considerations
Consult official Triad Magnetics documentation for cross-reference data. No public substitute part numbers are confirmed in available sources. Ensure replacement units match the 3.8VA rating and 6.3VCT output specifications. Verify mechanical mounting compatibility and electrical isolation standards.
