F-314X

Overview

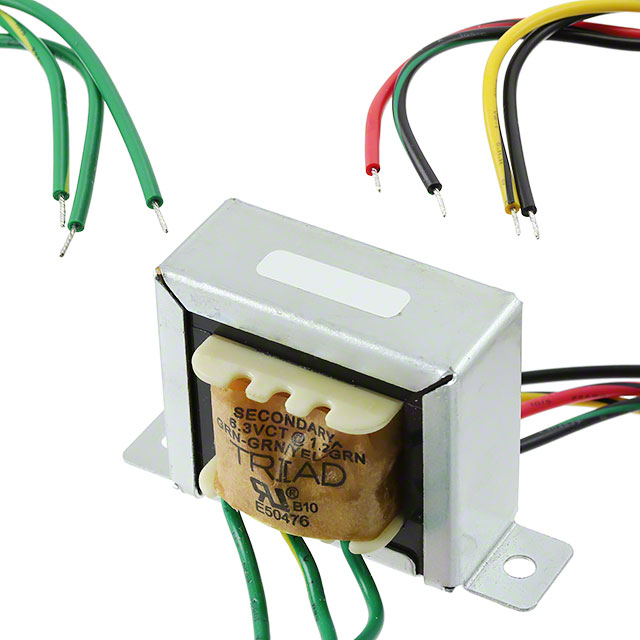

The F-314X is an industrial power transformer manufactured by Triad Magnetics, designed for chassis mounting with wire leads. It features a laminated core construction and supports dual primary voltages of 115V and 230V. The secondary output provides 6.3V at a maximum current of 1.2A, resulting in a 7.56 VA power rating. The unit includes a center-tapped secondary winding and offers 2500Vrms isolation voltage. Physical dimensions are 71.45mm in length, 41.28mm in width, and a maximum installation height of 41.28mm.

Feature Summary

• Dual primary winding configuration supporting both 115V and 230V input sources
• Center-tapped secondary winding design for versatile low-voltage applications
• Chassis mount style with integrated wire leads for direct connection
• Laminated core construction providing standard industrial control performance

Applications

• Industrial control panel power supplies
• Equipment requiring isolated 6.3VAC auxiliary power
• Chassis-mounted electronic enclosures
• General purpose industrial machinery transformers

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct lead frame and insulation class compliance. Confirm that the wire lead length and termination style match the system integration requirements. Cross-reference the RoHS status and country of origin with the latest production documentation before finalizing procurement orders.

Selection Notes

Select this component when a 7.56 VA capacity is sufficient for the load requirements. Ensure the available chassis space accommodates the 71.45mm x 41.28mm footprint and 41.28mm height. Verify that the operating environment temperature range aligns with the transformer's thermal ratings. Consider the wire lead termination method if PCB mounting alternatives are required.

Part Context

This part belongs to the F series of industrial control transformers from Triad Magnetics. The series typically utilizes laminated core technology for cost-effective power conversion in general industrial applications. These units are distinct from medical-grade or toroidal variants, focusing on standard chassis-mount reliability for factory automation and equipment power distribution.

Replacement Considerations

Direct substitutes may include other chassis-mount transformers with identical 6.3VCT @ 1.2A specifications and compatible physical footprints. Verify pinout compatibility and electrical isolation ratings before swapping. Consult the manufacturer's cross-reference guide for approved equivalent part numbers.
