F-3152XP

Overview

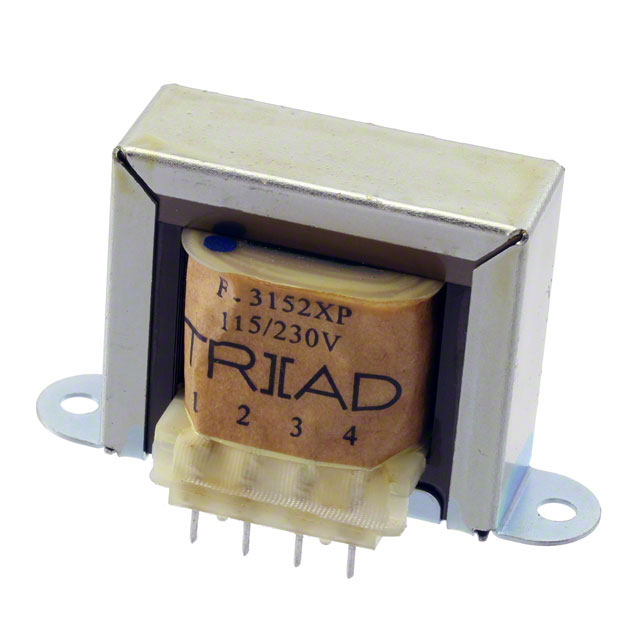

The Triad Magnetics F-3152XP is a laminated core power transformer designed for PCB mounting. It features dual primary windings rated for 115V and 230V operation in parallel configuration. The secondary side offers dual outputs: 7.5V at 1A when connected in parallel, or 15V at 500mA when connected in series. This component provides versatile voltage transformation capabilities for industrial control applications requiring flexible primary and secondary wiring options.

Feature Summary

• Dual primary winding design supports both 115V and 230V AC input configurations
• Flexible secondary output allows parallel connection for higher current or series connection for higher voltage
• Laminated core construction ensures efficient power transfer with low noise
• PCB mount style facilitates direct integration into electronic circuit boards

Applications

• Industrial control panels requiring isolated power supplies
• Equipment needing dual voltage secondary rails for logic and relay circuits
• Audio amplifier power stages utilizing split-rail configurations
• Test and measurement instruments requiring stable DC power conversion

Procurement Notes

Verify the specific pinout configuration against the official datasheet before procurement, as dual-winding transformers require precise series or parallel connections to achieve intended voltage and current ratings. Confirm that the PCB footprint matches the physical dimensions of the F-3152XP to ensure mechanical compatibility. Check for any regional regulatory compliance requirements such as UL or CE certification if applicable to your final product assembly.

Selection Notes

Select this model when application requires both high-voltage isolation and flexible secondary voltage options from a single transformer unit. Consider the thermal management capabilities if operating near maximum current ratings. Ensure the primary voltage matches the available supply by configuring the dual primaries correctly. Evaluate space constraints on the PCB as through-hole components require adequate clearance for installation and potential heat dissipation during continuous operation.

Part Context

The F-3152XP belongs to Triad Magnetics' general-purpose power transformer lineup, characterized by robust laminated core designs suitable for demanding environments. Unlike audio transformers focusing on signal integrity, this unit prioritizes power delivery efficiency. It complements other models in the series by offering specific voltage taps that cater to mixed-signal systems requiring both analog and digital power domains from a common source.

Replacement Considerations

Direct substitutes must match the 7.5VA rating, dual primary/secondary winding structure, and PCB mount form factor. Verify that alternative parts support identical 115V/230V primary inputs and provide equivalent 7.5V@1A or 15V@500mA secondary outputs. Ensure dimensional compatibility with existing PCB layouts to avoid re-engineering mechanical assemblies.
