Product Detailed Parameters
- Description：PWR XFMR LAMINATED 18.9VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：3A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：18.9VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview

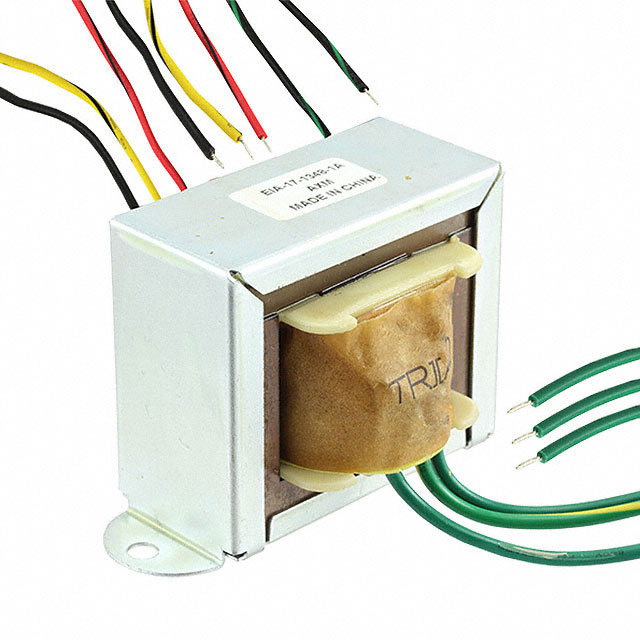

The Triad Magnetics F-316X is an industrial power transformer featuring a laminated core construction designed for chassis mounting with wire leads. It operates with dual primary voltage ratings of 115V and 230V AC, providing a single secondary output of 6.3V at 3.0A. The unit has a power rating of 18.9VA and includes seven terminals. It offers 1500Vrms dielectric isolation between windings, ensuring safety in industrial control applications.
Feature Summary
- Laminated core design for standard industrial power transformation
- Dual primary voltage capability for 115V and 230V AC inputs
- Chassis mount configuration with integrated wire leads
- High dielectric isolation rating for electrical safety
Applications
- Industrial control panels
- Equipment requiring isolated low-voltage power supplies
- Chassis-mounted electronic enclosures
Procurement Notes
Verify the specific datasheet revision to confirm terminal pinout and lead length specifications prior to integration. Ensure the input voltage matches the required 115V or 230V AC configuration. Confirm that the chassis mounting dimensions and wire lead termination methods align with the target enclosure design requirements.
Selection Notes
Select this component when a robust, chassis-mountable transformer with dual primary options is required for industrial environments. The 18.9VA rating suits moderate load applications. Consider the physical dimensions and wire lead style for PCB or terminal block connectivity within the assembly.
Part Context
This part belongs to the Triad Magnetics F series of industrial power transformers. These components are engineered for durability and reliability in demanding operational settings. The series provides various voltage and wattage combinations to support diverse control system architectures.
Replacement Considerations
Consult official Triad Magnetics documentation for direct cross-reference part numbers. Verify that any substitute maintains identical voltage ratings, current capacity, and mechanical mounting constraints.
