Product Detailed Parameters
- Description：PWR XFMR LAMINATED 56VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：28V
- Current - Output (Max)：2A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：56VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：63.50mm L x 61.90mm W
- Height - Seated (Max)：77.79mm
- Voltage - Isolation：1500Vrms
- Weight：2.9 lbs (1.3 kg)
Download product information
Overview

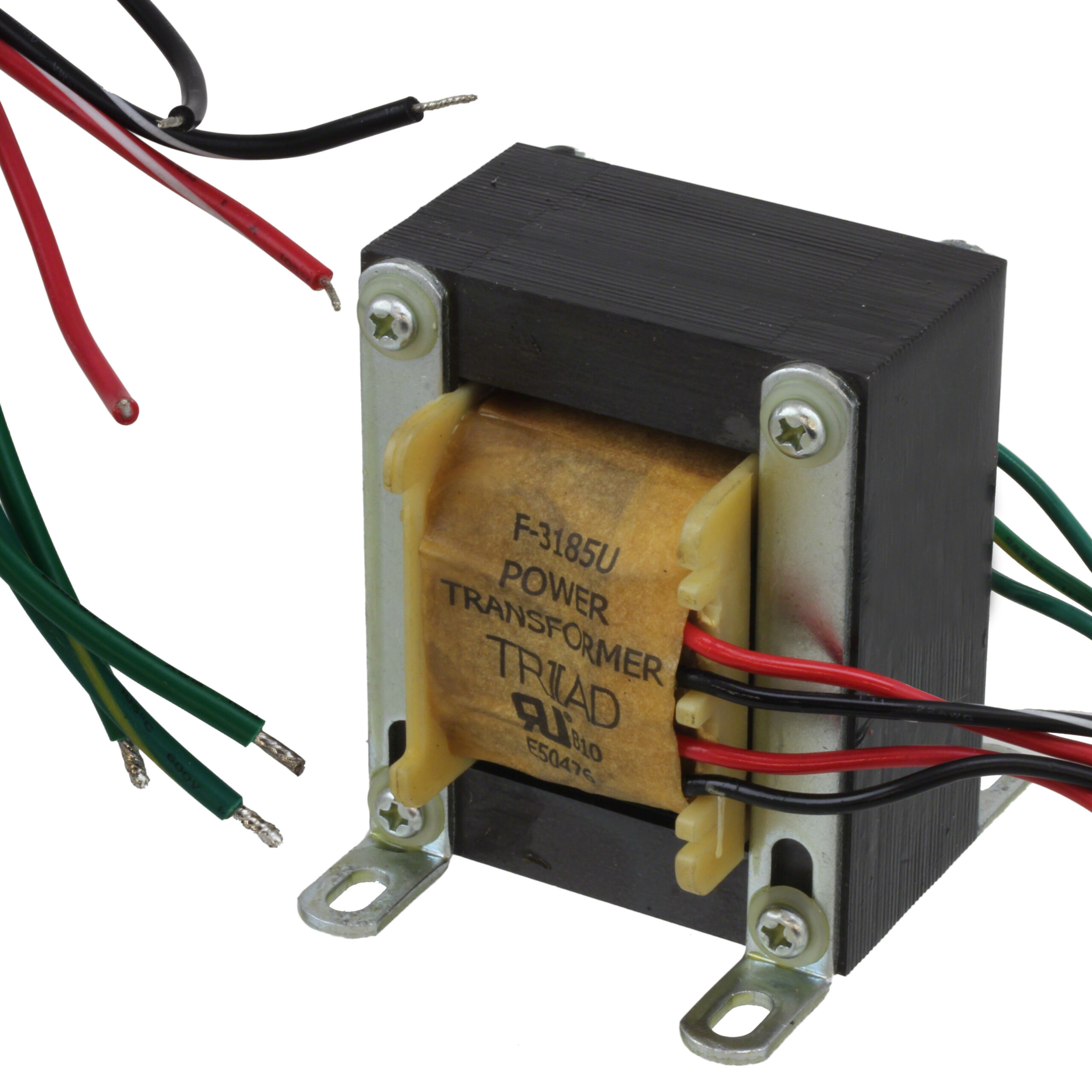

The Triad Magnetics F-3185U is a chassis-mount industrial power transformer with a 56 VA rating. It features dual primary windings supporting 115V and 230V AC inputs and a single secondary winding providing 28V at 2.0A. The unit utilizes wire leads for termination and measures 2 inches in length, 3.31 inches in width, and 1.94 inches in height.
Feature Summary
- Dual primary winding configuration enables compatibility with both 115V and 230V AC supply voltages.
- Single secondary winding delivers a consistent isolated output voltage.
- Chassis mount design with wire lead terminations for direct integration.
Applications
- Industrial control systems requiring isolated power conversion
- Equipment operating on variable primary voltage standards (115V/230V)
- Chassis-mounted electronic assemblies needing regulated low-voltage DC supply after rectification
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and terminal configurations match your enclosure requirements. Ensure input voltage ratings align with your facility's power distribution standards before procurement. Cross-reference the manufacturer part number directly to avoid confusion with similar series components.
Selection Notes
Select this component when dual-voltage primary flexibility is required within a compact chassis footprint. The 56 VA rating suits moderate load applications. Confirm that wire lead termination methods are compatible with your circuit board or terminal block layout prior to finalizing the design.
Part Context
This model belongs to the Triad Magnetics F-series of industrial control transformers. These units are designed for robust performance in demanding environments. The F-3185U specifically addresses needs for isolation and voltage step-down in standard industrial power architectures.
Replacement Considerations
Consult official Triad Magnetics documentation for verified cross-references. No public substitute part numbers are confirmed in the provided source material.
