F-325X

Overview

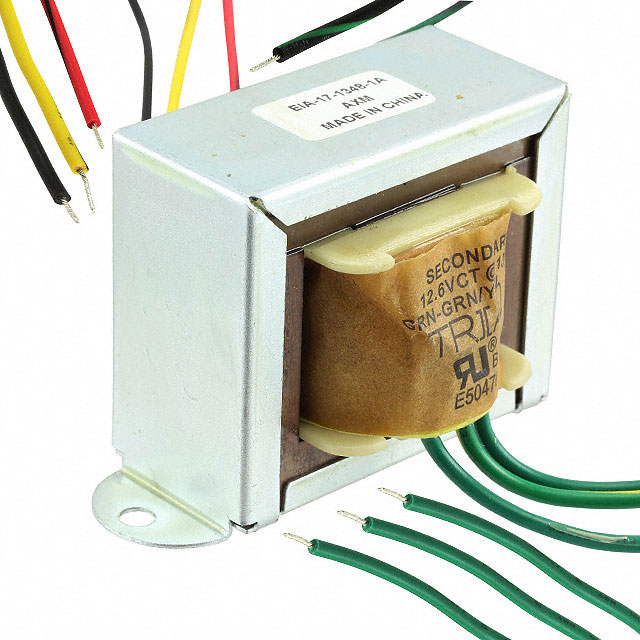

The Triad Magnetics F-325X is a laminated core power transformer designed for chassis mounting. It features a primary voltage rating of 115V and 230V, supporting 50/60Hz operation. The secondary output provides 12.6VCT at 1.5A, resulting in a power rating of 18.9VA. The unit includes wire leads for connection and measures 3-5/16 inches in width.

Feature Summary

• Laminated core construction for industrial control applications
• Chassis mount design with integrated wire leads
• Dual primary voltage capability for 115V and 230V systems

Applications

• Industrial control panels
• Equipment requiring isolated AC power conversion
• Chassis-mounted electronic enclosures

Procurement Notes

Verify the specific suffix or variant against official Triad Magnetics documentation to ensure compatibility with required insulation classes and terminal configurations. Confirm that the 18.9VA rating meets the load requirements of the target application circuit before procurement.

Selection Notes

Select this component when a compact, chassis-mountable solution is needed for stepping down standard line voltages to 12.6VCT. Ensure the physical dimensions fit the enclosure and that the wire lead termination style aligns with the system wiring architecture.

Part Context

This part belongs to the Triad Magnetics F series of industrial power transformers. These components are engineered for reliability in general-purpose power supply roles within industrial environments, offering robust isolation between primary and secondary circuits.

Replacement Considerations

The Hammond Manufacturing part number 266K12 is listed as a cross-reference substitute. Verify electrical specifications and mechanical footprint compatibility before substitution.
