F-341X

Overview

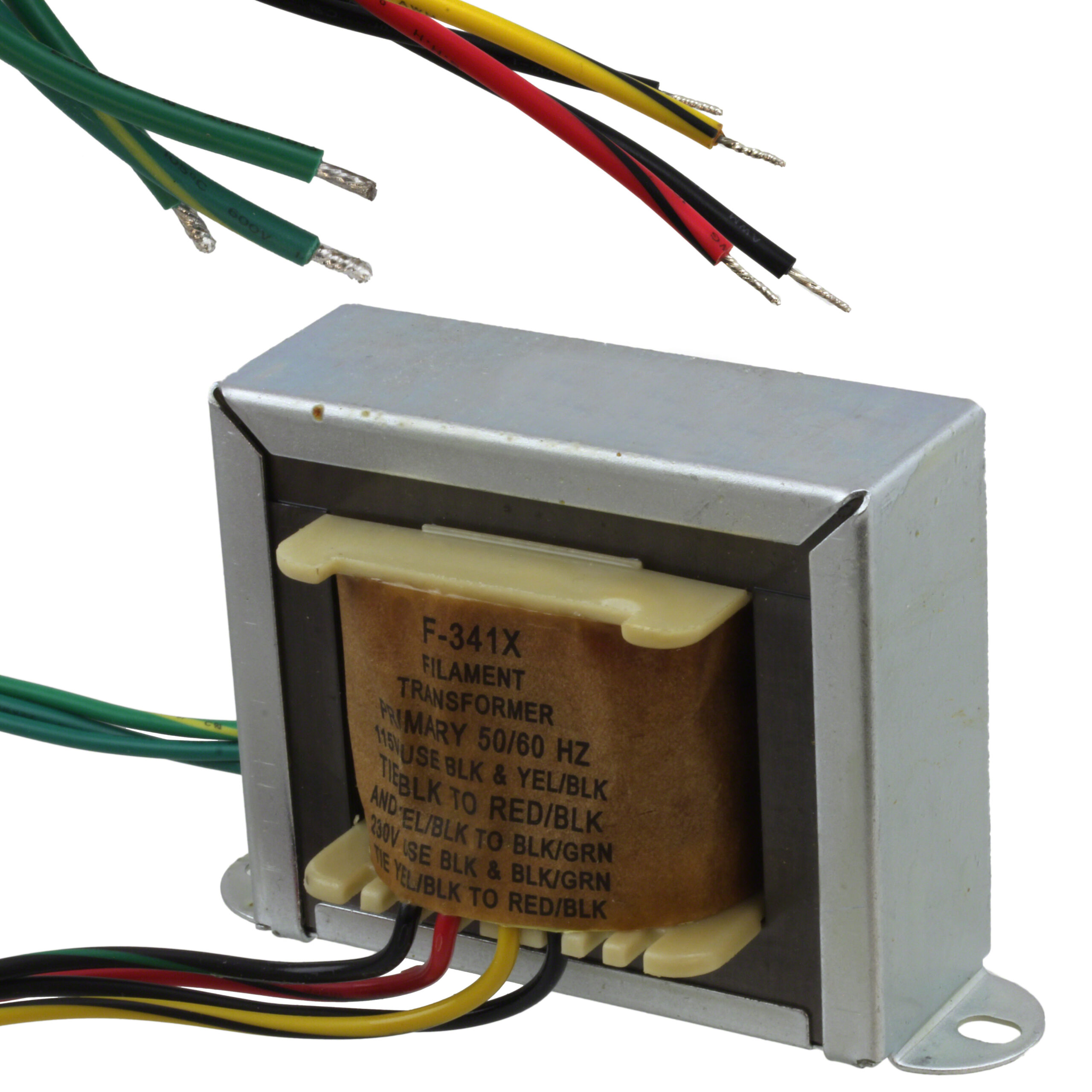

The Triad Magnetics F-341X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated for 115 VAC or 230 VAC input and a single secondary winding providing 25.2 VAC center-tapped output at a current rating of 2.0 A. The unit has a power rating of 50.4 VA (or 25.2 VA per side) and operates at 60 Hz. Physical dimensions are approximately 2 inches in length, 3.31 inches in width, and 1.94 inches in height. It carries UL approval.

Feature Summary

• Chassis mount construction with wire lead terminations for direct integration into control panels
• Dual voltage primary capability supporting both 115 VAC and 230 VAC inputs
• Center-tapped secondary output configuration suitable for rectifier circuits

Applications

• Industrial control panel power supplies
• Equipment requiring isolated AC power distribution
• Rectifier circuit input stages

Procurement Notes

Verify the specific voltage configuration required for your application, as datasheets may list variations such as 12.6VCT or 25.2VCT outputs depending on the exact suffix or revision. Confirm physical mounting hole patterns and lead lengths against your chassis design. Ensure the operating frequency matches your system requirements, typically 60Hz for this series. Check for RoHS compliance status if environmental regulations apply to your manufacturing process.

Selection Notes

Select the F-341X when a robust chassis-mount transformer with dual-voltage primary flexibility is needed. Compare its physical footprint against available space in the enclosure. Consider the thermal dissipation characteristics relative to the ambient temperature of the installation environment. Verify that the 2.0A current rating meets the peak load demands of the downstream circuitry without exceeding the transformer's capacity.

Part Context

This component belongs to the Triad Magnetics F series of industrial control transformers. These units are characterized by their durable chassis-mount design and use of bobbin windings. The series is commonly utilized in heavy-duty applications where reliable isolation and stable voltage transformation are critical for equipment operation.

Replacement Considerations

Direct substitutes include the F-344X, which offers similar chassis mounting but provides a 12.6VCT output instead of 25.2VCT. Ensure any replacement maintains the same VA rating and physical dimensions to fit existing enclosures without modification.
