F-344X

Overview

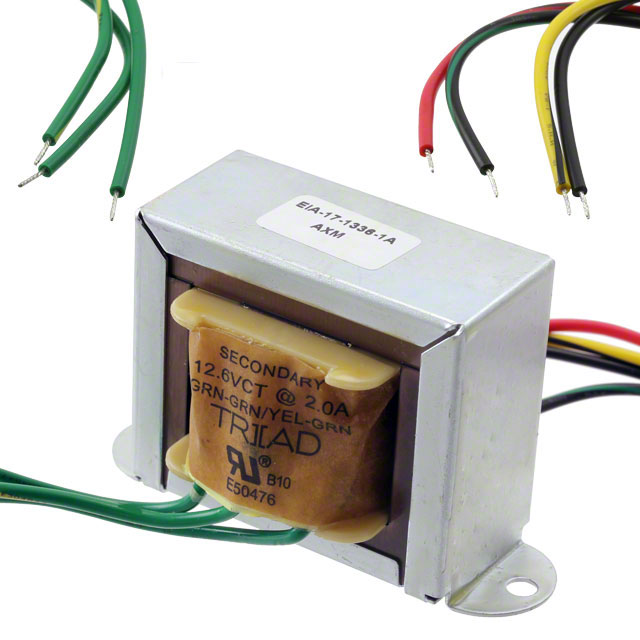

The Triad Magnetics F-344X is an industrial power transformer featuring a laminated core and chassis mount installation with wire leads. It provides a maximum power rating of 25.2 VA. The primary winding supports dual voltages of 115 VAC and 230 VAC, while the secondary delivers 12.6 V at a maximum current of 2 A. The unit includes a center tap on the secondary side and offers 1500 Vrms isolation voltage. Physical dimensions are approximately 84.12 mm in length, 50.80 mm in width, and 49.20 mm in height.

Feature Summary

• Chassis mount construction with integrated wire leads for direct connection
• Dual primary voltage capability supporting both 115 VAC and 230 VAC inputs
• Secondary winding features a center tap configuration
• Laminated core design providing standard industrial isolation

Applications

• Industrial control panels requiring isolated power supplies
• Equipment utilizing 12.6 VAC control circuits
• Chassis-mounted electronic enclosures needing compact transformers
• General purpose AC to AC voltage conversion in industrial settings

Procurement Notes

Verify that the specific application requires a center-tapped secondary output, as this is a fixed characteristic of the F-344X model. Confirm physical clearance matches the specified chassis mount dimensions. Ensure input voltage selection aligns with the available primary taps. Check RoHS compliance status if environmental regulations apply to the final assembly. Review datasheet specifications for thermal derating requirements under continuous load conditions.

Selection Notes

Select the F-344X when a 25.2 VA capacity is sufficient for the load. This component is appropriate for designs requiring a center-tapped 12.6 V secondary source. Consider the chassis mounting style and lead termination method during PCB or panel layout. Compare against higher VA models if future expansion or increased current demand is anticipated. Evaluate space constraints against the physical footprint provided in the mechanical drawings.

Part Context

The F-344X belongs to the Triad Magnetics F series of single secondary power transformers. This series is designed for general industrial applications requiring reliable isolation between primary and secondary circuits. The part utilizes a laminated core structure typical for cost-effective power distribution in control systems. It serves as a standard solution for stepping down line voltage to lower control voltages in equipment racks and panels.

Replacement Considerations

No public confirmed substitute part numbers are documented.
