F-348XP

Overview

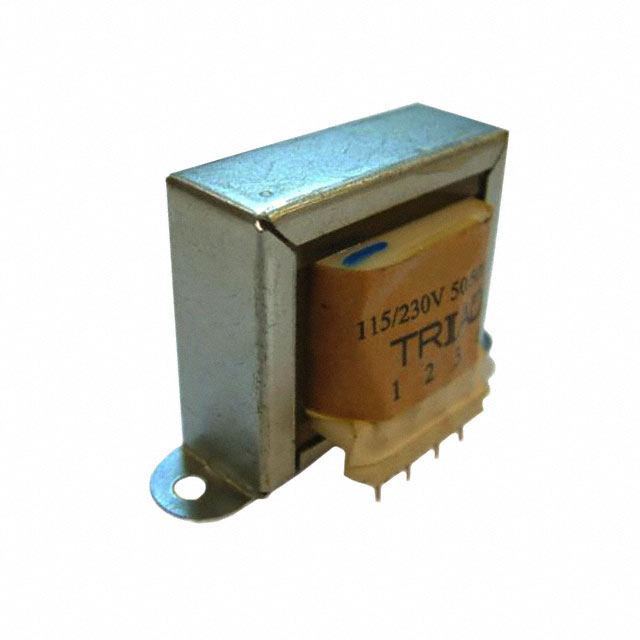

The Triad Magnetics F-348XP is a board-mount power transformer with a 4.5 VA rating. It accepts 115 VAC or 230 VAC primary input and provides dual secondary outputs of 6.3 VAC or 12.6 VAC at 0.350 A each. The unit features through-hole solder pin termination, measures 1.63 inches in length, 2.38 inches in width, and 1.38 inches in height, and operates within a temperature range of 0°C to +130°C.

Feature Summary

• Dual secondary winding configuration supporting series or parallel output connections
• Through-hole mounting design with solder pin termination for PCB integration
• High thermal stability rated for operation up to +130°C

Applications

• Industrial control systems requiring isolated power conversion
• Medical equipment utilizing UL/CE certified components
• General-purpose electronic devices needing low-voltage AC power supply

Procurement Notes

Verify the specific voltage configuration required for your application, as the dual secondaries can be wired in series or parallel. Confirm that the through-hole footprint matches your PCB layout constraints. Ensure the operating environment does not exceed the maximum temperature rating of +130°C. Check for compliance with relevant safety standards such as UL and CE if applicable to your end product.

Selection Notes

Select this component when a compact, board-mount solution is needed for 115V/230V input applications. The 4.5 VA rating suits low-power circuits. Consider the physical dimensions (1.63 x 2.38 x 1.38 inches) for enclosure space. The dual secondary option offers flexibility in voltage selection compared to single-output transformers.

Part Context

Part of the Triad Magnetics F-series industrial control transformers. Designed for chassis or PCB mounting depending on variant. Offers reliable isolation between primary and secondary circuits. Commonly used in applications requiring robust performance in controlled environments.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative transformers based on matching electrical ratings (4.5 VA, 115/230V primary, 6.3/12.6V secondary) and mechanical footprint compatibility.
