F-350XP

Overview

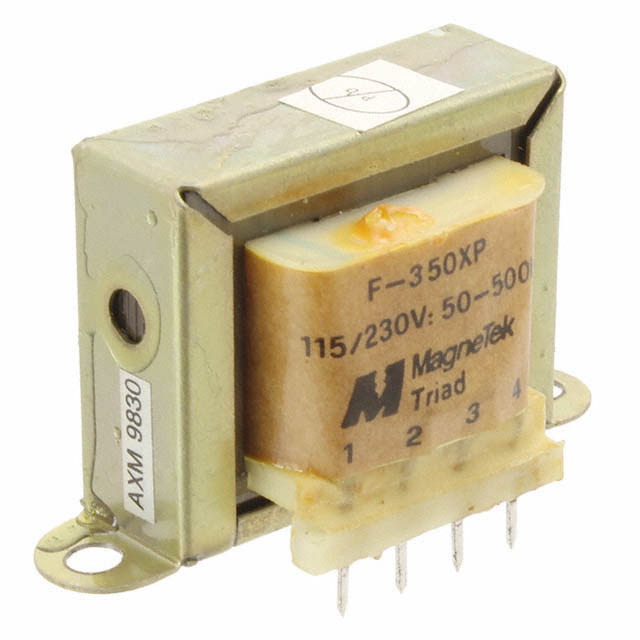

The Triad Magnetics F-350XP is a power transformer designed for printed circuit board mounting. It features a dual primary winding configuration and delivers a secondary output of 24.0V CT at 0.18A. The unit has a power rating of 4.5VA and supports an isolation voltage of 1500Vrms. It utilizes PC pin termination for secure board integration.

Feature Summary

• Dual primary winding design for flexible input voltage compatibility
• Center-tapped secondary output for rectification applications
• PC pin termination for direct printed circuit board integration

Applications

• Industrial control circuits requiring low voltage AC supply
• Power supply modules utilizing center-tapped rectification
• Electronic equipment with PCB-mounted transformer requirements

Procurement Notes

Verify the specific datasheet version to confirm insulation class and regulatory compliance status. Ensure the selected variant matches the required isolation voltage and thermal characteristics for the intended operating environment. Cross-reference terminal dimensions with the target PCB layout to guarantee mechanical fit.

Selection Notes

Select this component when a compact, board-mount solution is required for low-power applications. The dual primary winding allows adaptation to different line voltages without changing hardware. Verify that the 4.5VA rating meets the load requirements of the downstream circuitry before finalizing the design.

Part Context

This part belongs to the F series of power transformers from Triad Magnetics. The series offers various configurations for chassis and PCB mounting. The F-350XP specifically addresses needs for small form factor installations where space constraints limit the use of larger industrial enclosures.

Replacement Considerations

The F-350XP_13 is a documented variant within the same product family. Verify electrical parameters and physical dimensions before substitution to ensure compatibility with existing designs.
