F-354X

Overview

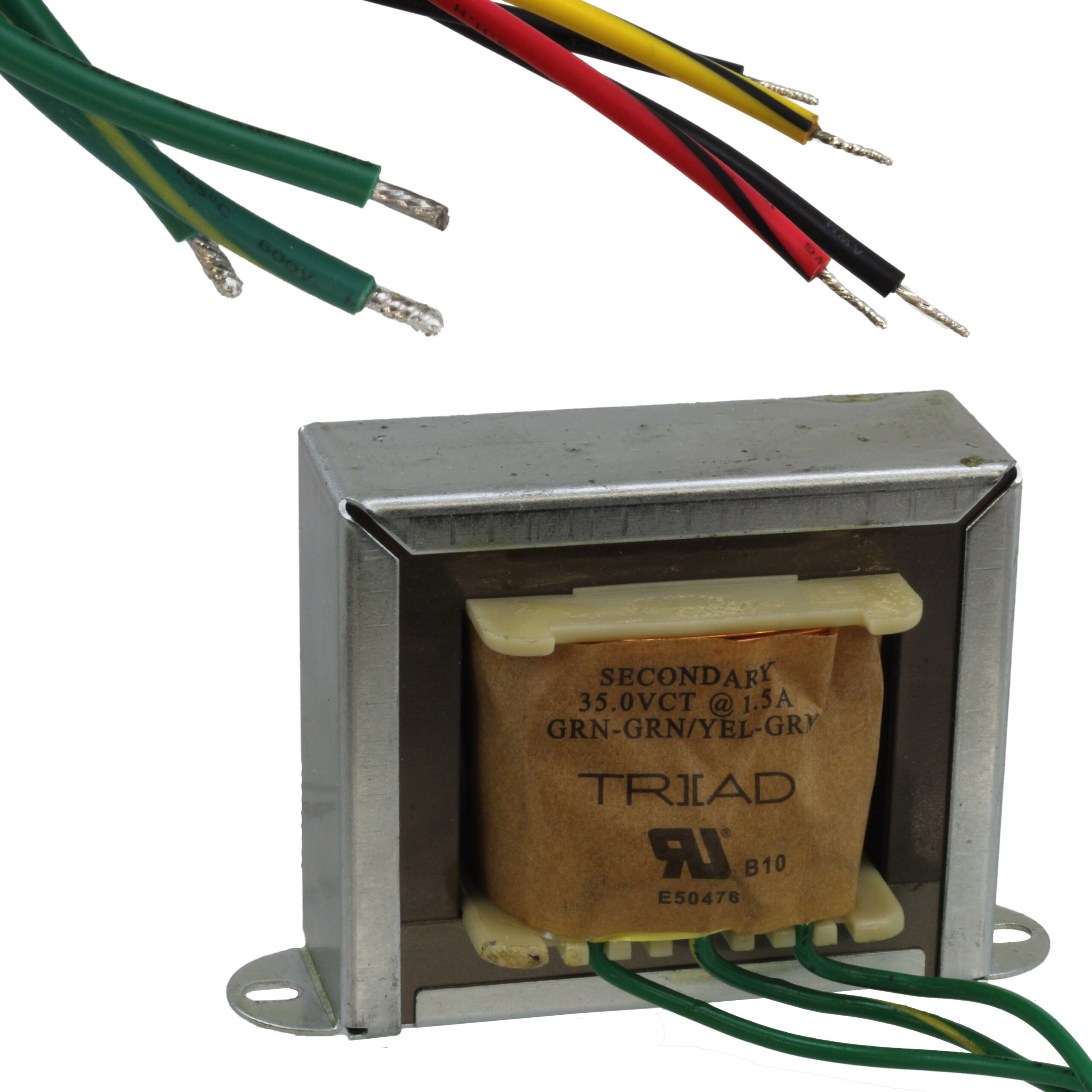

The Triad Magnetics F-354X is a laminated core power transformer designed for industrial control applications. It features a dual primary winding configuration supporting 115V and 230VAC input voltages at 50/60Hz operation. The secondary side provides a single 35V output capable of delivering up to 1.5A, resulting in a total power rating of 52.5VA. This component utilizes chassis mounting with wire leads for termination and offers 1500Vrms isolation voltage between windings.

Feature Summary

• Dual primary winding design enables flexible connection to standard 115V or 230VAC power lines.
• Laminated core construction supports reliable performance in industrial control environments.
• Chassis mount style with wire leads facilitates straightforward integration into equipment enclosures.

Applications

• Industrial control panels requiring isolated low-voltage power supplies
• Equipment needing step-down transformation from mains voltage to 35VAC
• General purpose power distribution in machinery with 115V/230VAC inputs

Procurement Notes

Verify the specific voltage configuration required for your application, as the dual primary allows for different input connections. Confirm that the chassis mounting dimensions and lead lengths meet your enclosure requirements. Ensure the 52.5VA power rating and 1.5A current capacity are sufficient for the connected load. Check for any regional compliance certifications if applicable to your deployment environment.

Selection Notes

Select this model when a 35VAC secondary output is specifically needed from a 115V or 230VAC source. The 52.5VA rating suits moderate power industrial loads. Consider the physical dimensions and chassis mounting style during mechanical design. Verify that the 1500Vrms isolation meets safety standards for your specific equipment class.

Part Context

This component belongs to the Triad Magnetics F series of industrial power transformers. These units are characterized by their robust laminated core designs and chassis mounting options. The series is widely used in general industrial automation and control systems where reliable voltage transformation is critical.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new component matches the 52.5VA rating, 35V secondary output, and 115V/230V dual primary configuration. Physical footprint and mounting style compatibility must also be verified.
