F-359XP

Overview

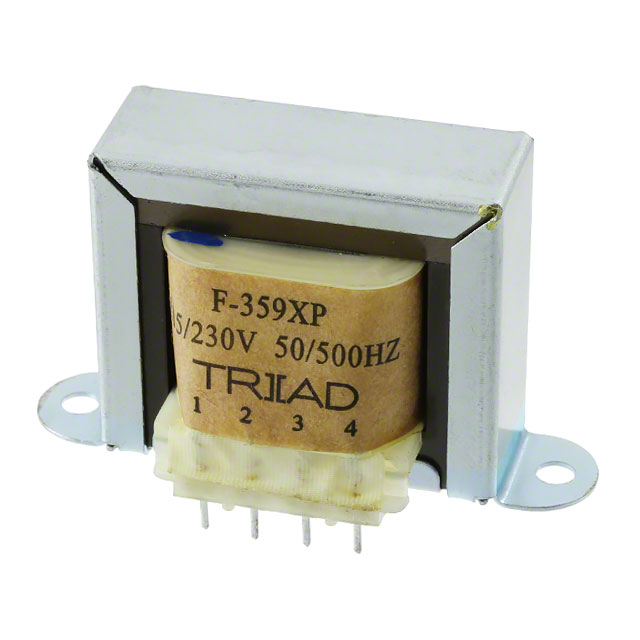

The Triad Magnetics F-359XP is a laminated core power transformer designed for PCB mounting. It features dual primary windings supporting 115V and 230VAC inputs in parallel configuration, and dual secondary windings providing a 24.0V center-tapped output at 0.450A. The unit has a 10VA power rating and offers 1500Vrms isolation voltage. Operating frequency range is 50Hz to 60Hz.

Feature Summary

• Dual primary winding configuration supports both 115V and 230VAC input voltages
• High voltage isolation of 1500Vrms ensures safe operation
• Compact PCB mount design with solder pin termination

Applications

• Industrial control equipment requiring electrical isolation
• Electronic devices needing 115V/230VAC to 24VCT conversion
• PCB-based power supply circuits

Procurement Notes

Verify the specific datasheet version and regulatory compliance status (UL, CSA, VDE) prior to procurement. Confirm that the 10VA rating and 0.450A current capacity meet the target application's thermal and load requirements. Ensure the PCB layout accommodates the component's physical dimensions and through-hole soldering process.

Selection Notes

Select this component when a 10VA isolated power source is required for PCB assembly. The dual primary capability allows flexibility for global voltage standards. The 24VCT secondary is suitable for rectification or split-rail applications. Verify that the 1500Vrms isolation meets safety clearance requirements for the intended enclosure environment.

Part Context

The F-359XP belongs to Triad Magnetics' F-series of industrial power transformers. This series typically includes various ratings and configurations for chassis and board mounting. The XP suffix often denotes specific construction or compliance variations within the product line, distinguishing it from standard F-series models.

Replacement Considerations

The Hammond Manufacturing part number 160G24 is listed as a cross-reference for the F-359XP. Verify electrical parameters and mechanical fit before substitution.
