Product Detailed Parameters
- Description：PWR XFMR LAMINATED 78VA CHAS MT
- Series：Universal
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：6.5V, 13V, 19.5V, 26V
- Current - Output (Max)：3A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：78VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：71.42mm L x 66.68mm W
- Height - Seated (Max)：85.73mm
- Voltage - Isolation：1500Vrms
- Weight：3.5 lbs (1.6 kg)
Download product information
Overview

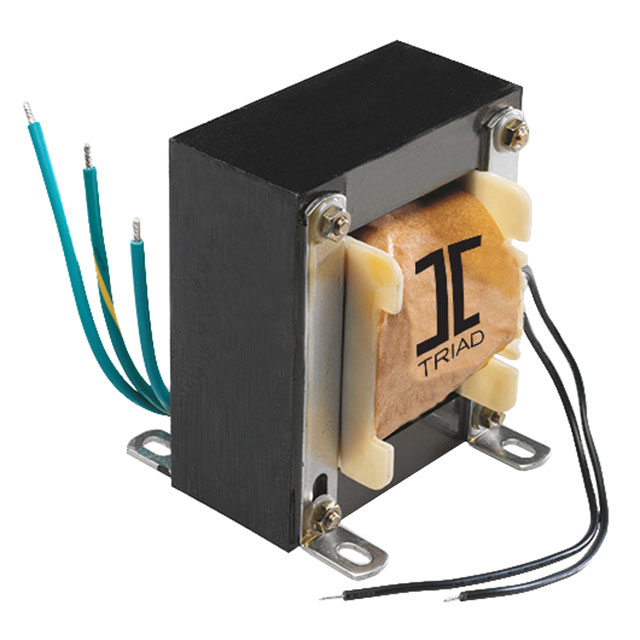

The Triad Magnetics F-360U is a power transformer featuring a laminated core construction and flange mount installation. It provides a maximum power rating of 78VA with a primary voltage of 1500Vrms. The secondary configuration supports parallel operation at 18V with a current of 9A, or series operation at 36V with a current of 4.5A. The unit utilizes wire lead termination for circuit connection. Physical dimensions are specified as 71.42mm in length by 66.68mm in width, with a maximum seated height of 85.73mm. The device offers an isolation voltage of 1500Vrms.
Feature Summary
- Flange mount design for secure chassis installation
- Laminated core construction for efficient power transfer
- Dual secondary winding options for flexible voltage configurations
Applications
- Industrial control systems requiring high isolation
- Audio equipment power supplies
- Medical device power circuits
Procurement Notes
Verify the specific secondary configuration requirements against the datasheet before ordering. Confirm that the mounting hardware matches the flange specifications. Ensure the operating environment temperature range aligns with the component ratings. Check for any required certifications such as UL or CSA depending on the target market regulations. Validate input voltage compatibility with the primary winding specifications.
Selection Notes
Choose this model when high isolation voltage is critical for safety compliance. The 78VA rating suits moderate power applications. Consider the physical size constraints due to the flange mount style. Evaluate the need for wire leads versus PCB pins based on assembly methods. Compare against lower VA rated alternatives if power requirements are reduced.
Part Context
This component belongs to the Triad Magnetics power transformer lineup. It is designed for general purpose industrial and commercial applications. The brand emphasizes reliability and safety standards in its magnetic components. The product line includes various voltage and power ratings to meet diverse design needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
