F-366XP

Overview

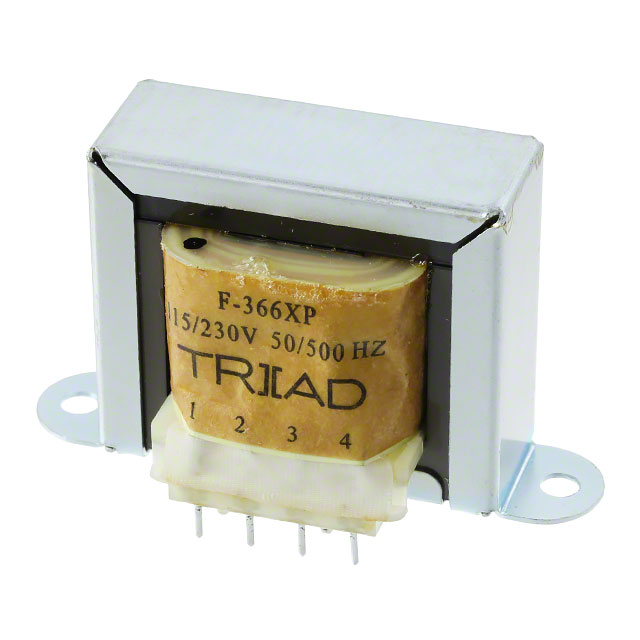

The Triad Magnetics F-366XP is a laminated core power transformer designed for PCB mounting. It features dual primary windings rated for 115V and 230V AC operation in parallel configuration. The secondary output provides 16.0V center-tapped (ct) at a current rating of 0.640A, resulting in a total power capacity of 10VA. This component utilizes a bobbin construction suitable for industrial applications requiring reliable voltage transformation.

Feature Summary

• Dual primary winding design supporting both 115V and 230V AC input voltages
• Center-tapped secondary output configuration for versatile circuit integration
• Laminated core construction with bobbin assembly for structural stability

Applications

• Relay control circuits
• Solenoid actuation systems
• Small motor speed changers
• Heating element power supplies

Procurement Notes

Verify the specific voltage configuration required for your application, as dual primary transformers often require correct jumper settings for 115V or 230V operation. Confirm that the PCB footprint matches the physical dimensions of the F-366XP to ensure proper mechanical fit during assembly. Check for any regional certification requirements such as UL or CUL compliance if applicable to your final product deployment.

Selection Notes

Select this model when a 10VA power rating is sufficient for the load. Ensure the input voltage matches the available supply by configuring the primary windings appropriately. Consider the physical size constraints of the PCB layout, as through-hole mounting requires adequate clearance. Verify that the 16Vct secondary voltage aligns with the downstream rectification and regulation stages of the design.

Part Context

This component belongs to the Triad Magnetics power transformer family, which offers various configurations for board-mount applications. The F-366XP specifically addresses needs for moderate power isolation in industrial equipment. It serves as a standard solution for converting mains voltage to lower levels for control logic and auxiliary power distribution within electronic enclosures.

Replacement Considerations

Direct substitutes must match the 10VA rating, 16Vct secondary output, and dual primary input capabilities. Verify that alternative components share the same pinout and physical mounting dimensions to avoid PCB redesign. Consult manufacturer cross-reference lists for equivalent laminated core transformers with identical electrical specifications.
