F-372P

Overview

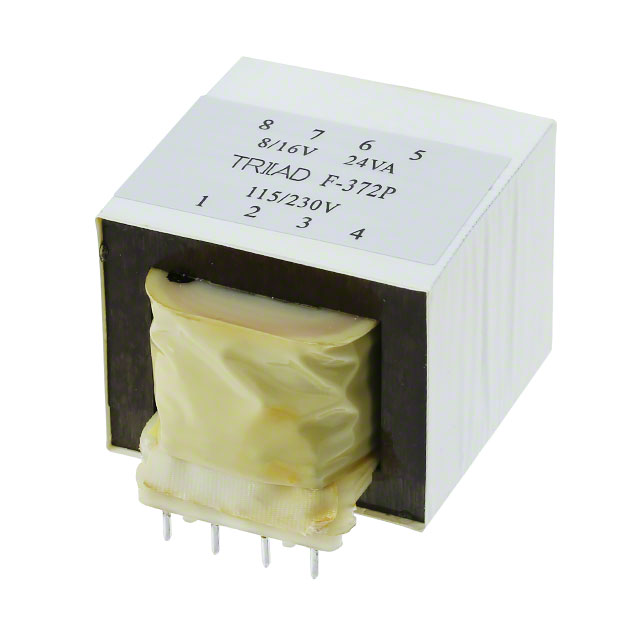

The Triad Magnetics F-372P is a laminated core power transformer designed for through-hole mounting. It features dual primary windings supporting 115V and 230VAC inputs in parallel or series configurations. The secondary output provides 8VAC at 3A (parallel) or 16VAC at 1.5A (series). Rated at 24VA, it utilizes wire leads for PCB connection.

Feature Summary

• Dual primary winding configuration for flexible voltage input compatibility
• Laminated core construction for standard power transformation
• Through-hole termination style for printed circuit board integration

Applications

• Industrial control panel power supplies
• General purpose AC to DC rectifier circuits
• Equipment requiring isolated low-voltage AC sources

Procurement Notes

Verify the specific datasheet version to confirm lead times and RoHS compliance status prior to ordering. Ensure that the required current rating matches the intended load, as the component supports distinct parallel and series secondary configurations with corresponding amperage limits.

Selection Notes

Select this model when a 24VA capacity is sufficient for the application. Choose the F-372P if through-hole mounting is preferred over chassis installation. Confirm whether the system requires 8V or 16V secondary output to determine the correct wiring configuration for the dual primaries and secondaries.

Part Context

This component belongs to the Triad Magnetics F series of industrial power transformers. It serves as a standard solution for stepping down mains voltage to lower levels suitable for electronic circuitry, distinguishing itself from toroidal or medical-grade variants by its laminated core design and general-purpose classification.

Replacement Considerations

Hammond Manufacturing part number 160H40 is documented as a similar substitute option.
