F-376P

Overview

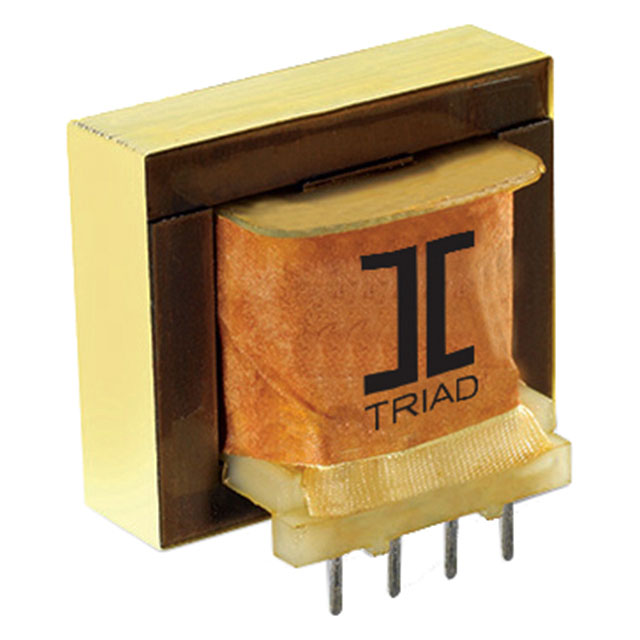

The Triad Magnetics F-376P is a power transformer featuring a laminated core and dual primary winding configuration. It supports 115V and 230V AC input voltages. The secondary output provides 34.0V center-tapped at 0.7A, or 17.0V in parallel mode. This component utilizes PC pin through-hole termination for PCB mounting. It offers 1500Vrms isolation voltage and complies with RoHS standards.

Feature Summary

• Dual primary winding design for flexible 115V/230V AC input compatibility
• Center-tapped secondary output capability for varied rectification needs
• High isolation rating of 1500Vrms between windings
• PC pin through-hole mounting for secure board integration

Applications

• General purpose power supply circuits
• Industrial control equipment
• Audio amplifier power stages

Procurement Notes

Verify the specific secondary configuration required by your circuit design, as the part supports both center-tapped and parallel outputs. Confirm that the 24VA power rating aligns with your load requirements. Ensure the through-hole footprint matches your PCB layout. Check for RoHS compliance if environmental regulations apply to your manufacturing process.

Selection Notes

Select this model when a compact 24VA transformer with high isolation is needed. It is suitable for applications requiring dual voltage input flexibility without external switching. Consider the physical dimensions and lead spacing for enclosure fit. Compare against similar Triad series parts if different current ratings are necessary.

Part Context

This component belongs to the Triad Magnetics F-series of power transformers. These units are designed for general industrial and commercial applications. The series emphasizes reliability and standard form factors. It serves as a fundamental power conversion element in electronic systems requiring isolated AC-to-AC transformation.

Replacement Considerations

Hammond Manufacturing 160H40 is listed as a similar substitute part number.
