Product Detailed Parameters
- Description：PWR XFMR LAMINATED 72VA CHAS MT
- Series：Control Transformers
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 12V, Series 24V
- Current - Output (Max)：Parallel 6A, Series 3A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：72VA
- Mounting Type：Chassis Mount
- Termination Style：Solder Lug
- Size / Dimension：96.82mm L x 71.42mm W
- Height - Seated (Max)：86.51mm
- Voltage - Isolation：1500Vrms
- Weight：4.3 lbs (2 kg)
Download product information
Overview

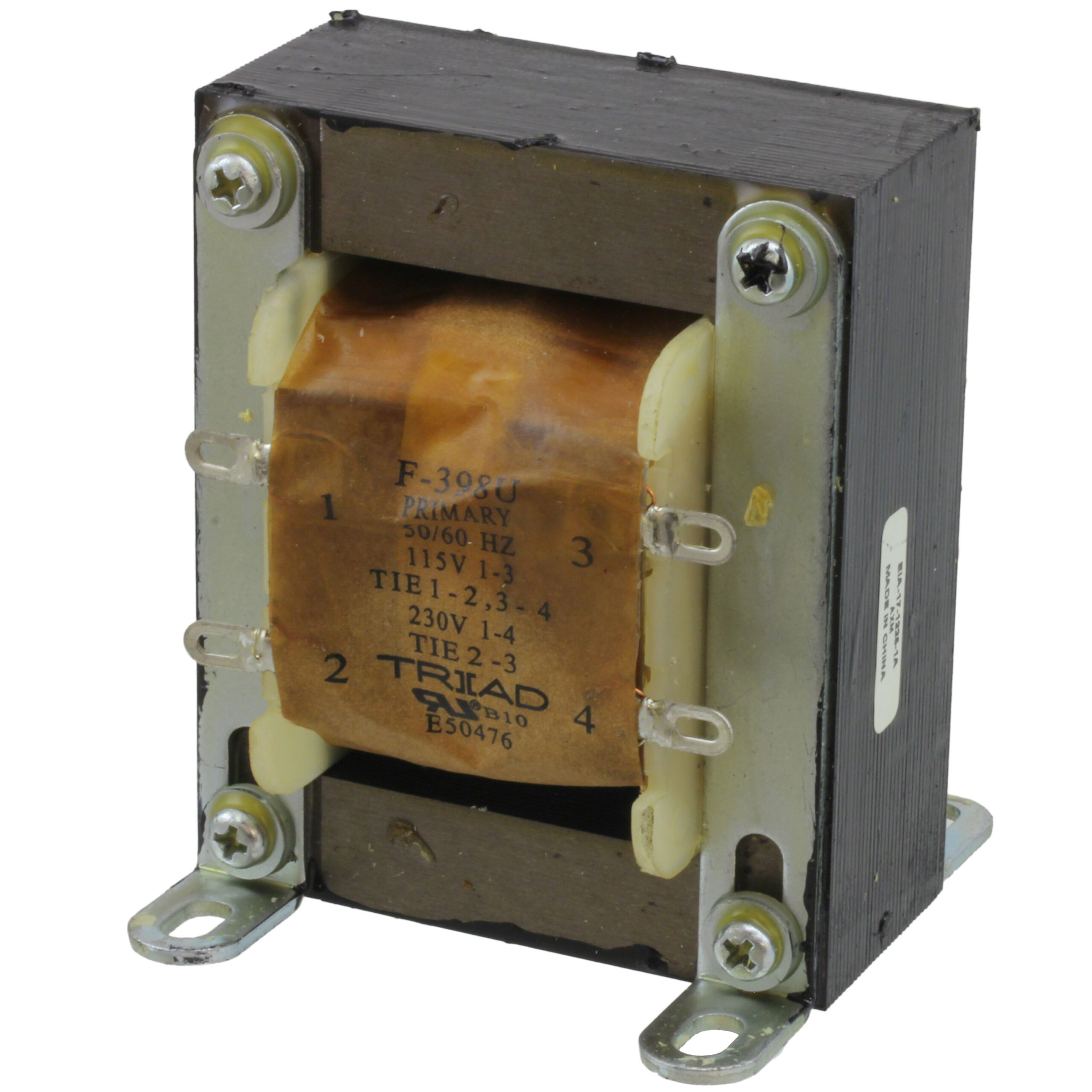

The F-398U is a laminated core power transformer manufactured by Triad Magnetics, designed for industrial applications. It features a chassis mount style with quick connect terminals. The unit has a power rating of 72 VA and supports dual primary windings rated at 115 VAC and 230 VAC in parallel configuration. Secondary options include a 12V winding (parallel) or a 24V winding (series). It provides an insulation voltage of 1500 Vrms.
Feature Summary
- Dual primary and secondary winding configurations provide flexible voltage adaptation for various industrial control circuits.
- Chassis mount design with quick connect terminals facilitates secure installation and efficient wiring connections.
- Laminated core construction ensures stable performance under standard operating conditions.
Applications
- Industrial control systems requiring isolated power supply
- Equipment needing flexible primary voltage input (115V/230V)
- Control panels utilizing quick-connect terminal interfaces
Procurement Notes
Verify the specific secondary voltage requirement before ordering, as the F-398U offers distinct 12V parallel and 24V series configurations. Confirm that the application environment supports chassis mounting and that the 72 VA rating meets the load demands. Ensure compatibility with the 1500 Vrms insulation specification for safety compliance in the intended deployment scenario.
Selection Notes
Select this component when a robust industrial transformer with flexible voltage options is required. The dual primary capability simplifies integration across different regional power standards. Consider the physical dimensions and chassis mounting requirements to ensure proper fit within the equipment enclosure. Validate that the quick connect terminal type aligns with existing wiring harnesses.
Part Context
The F-398U belongs to Triad Magnetics' line of industrial power transformers. These components are engineered for durability and reliability in demanding environments. The product series emphasizes versatile electrical configurations to accommodate diverse system architectures without requiring custom winding solutions.
Replacement Considerations
Public confirmed substitute part numbers: None identified.
