F-401U

Overview

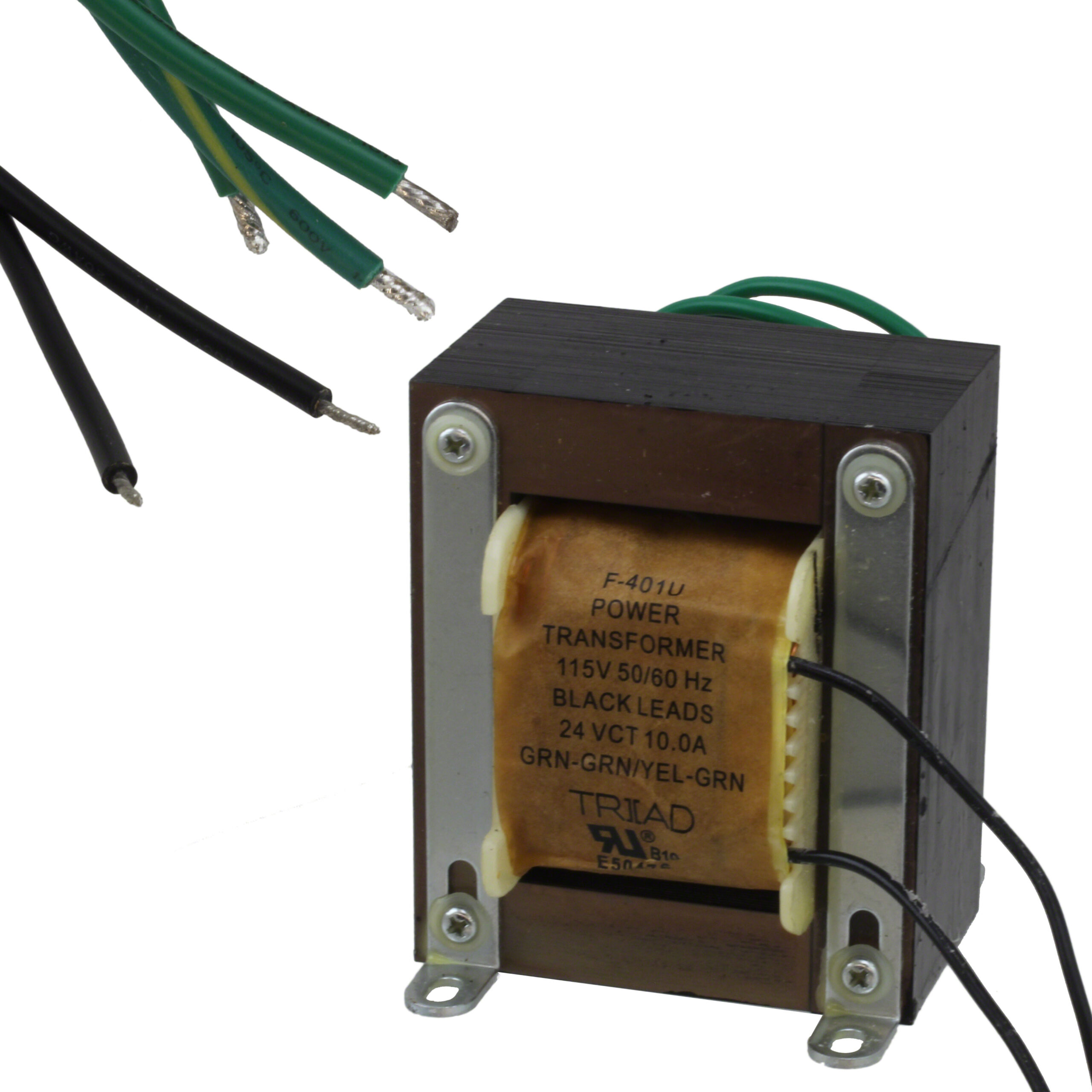

The Triad Magnetics F-401U is a laminated core power transformer designed for chassis or base mount applications. It features a single primary winding rated at 115V and a single secondary winding providing 24V output. The unit delivers a power rating of 240VA with a maximum current capacity of 10A on the secondary side. Termination is achieved via wire leads, facilitating integration into industrial equipment requiring robust voltage conversion.

Feature Summary

• Laminated core construction for stable power transformation
• Single primary to single secondary winding configuration
• Wire lead termination for flexible mounting options

Applications

• Industrial control panels
• Chassis-mounted electronic enclosures
• General purpose power supply systems

Procurement Notes

Verify that the specific order matches the 240VA power rating and 24V secondary output requirements. Confirm wire lead length and flange dimensions against the mechanical layout. Ensure the installation environment supports the thermal characteristics of a laminated core transformer operating at this capacity.

Selection Notes

Select this component when a high-power 115V to 24V conversion is required in a chassis-mount form factor. The 240VA rating suits heavy-duty industrial loads. Consider the physical footprint and wire lead accessibility during PCB or panel design phases to ensure proper clearance and connection.

Part Context

This model belongs to Triad Magnetics' power transformer lineup, specifically engineered for industrial-grade durability. It utilizes a standard laminated core design typical for general-purpose AC power distribution within larger electrical assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and wiring specifications before considering alternative models.
