Product Detailed Parameters
- Description：PWR XFMR LAMINATED 26.8VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：26.8V
- Current - Output (Max)：1A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：26.8VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview

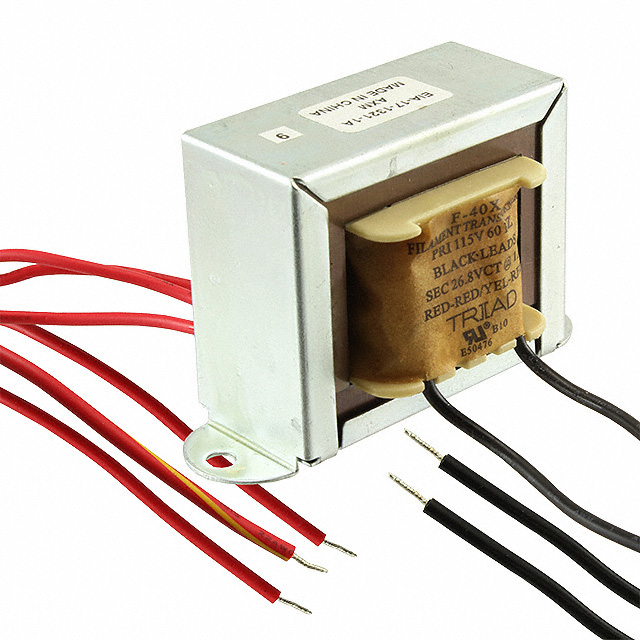

The Triad Magnetics F-40X is a chassis-mount power transformer designed for industrial control applications. It features a single primary winding rated for 115 VAC and 230 VAC input voltages. The unit provides a single secondary output of 26.8 VAC at a current rating of 1.0 Ampere, resulting in a total power capacity of 26.8 VA. This component utilizes bobbin construction and includes wire leads for connection.
Feature Summary
- Chassis mounting design with integrated wire leads
- Single primary winding supporting dual voltage inputs
- Single secondary winding providing isolated output
- Bobbin core construction for standard isolation
Applications
- Industrial control panel power supplies
- Equipment requiring 26.8 VAC isolation
- General purpose AC to AC voltage transformation
Procurement Notes
Verify the specific lead configuration and insulation class against the official datasheet before integration. Confirm that the 26.8 VAC secondary rating aligns with the target circuit requirements. Ensure chassis mounting hardware compatibility with the installation enclosure. Cross-reference the manufacturer part number to distinguish from similar series variants.
Selection Notes
Select this model when a dedicated chassis-mounted solution is required for low-power control circuits. The fixed 26.8 VAC output limits flexibility compared to multi-tap alternatives. Consider physical dimensions and lead length constraints during layout planning. Evaluate thermal dissipation needs based on the 26.8 VA load capacity within the enclosed environment.
Part Context
This component belongs to the Triad Magnetics F series of industrial control transformers. The series offers various power ratings and mounting styles to support diverse equipment architectures. The F-40X represents a specific configuration optimized for chassis installation rather than PCB mounting.
Replacement Considerations
Consult the official Triad Magnetics cross-reference documentation for verified substitute part numbers. Generic equivalents may not match the specific 26.8 VAC output or chassis mounting profile.
