Product Detailed Parameters
- Description：PWR XFMR LAMINATED 25.2VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：6.3V
- Current - Output (Max)：4A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：No
- Power - Max：25.2VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 50.80mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview

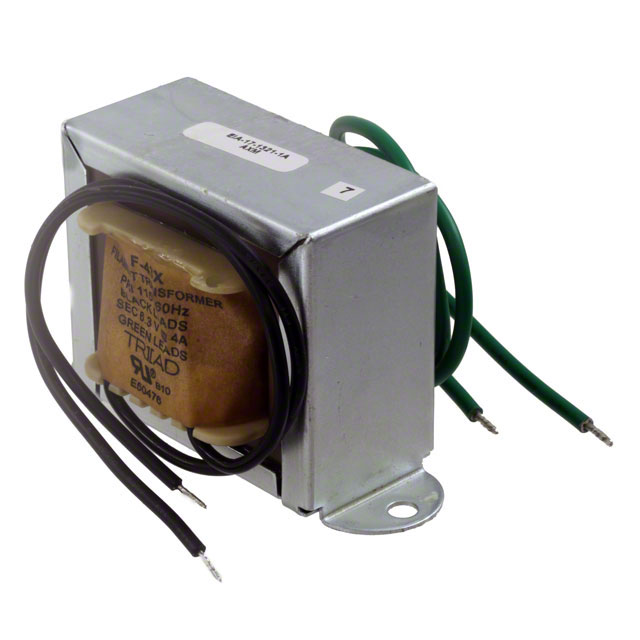

The Triad Magnetics F-43X is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated for 115 VAC input and a dual secondary configuration providing 6.3 VCT at 4.0A. The unit delivers a total power rating of 25.2 VA. This component utilizes wire leads for electrical connection and is constructed to support industrial control applications requiring reliable voltage transformation.
Feature Summary
- Laminated core construction for efficient power transfer
- Dual secondary winding capability for flexible circuit design
- Chassis mount style with integrated wire leads
Applications
- Industrial control panels
- Power supply units
- Electronic equipment enclosures
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturing revisions may occur. Confirm that the chassis mounting holes align with your enclosure specifications. Ensure the wire lead length meets your internal wiring requirements. Check for any regional compliance certifications required for your target market. Validate the operating temperature range against your environmental conditions before finalizing the purchase order.
Selection Notes
Choose this model when a 115VAC primary input is required with a 6.3VCT output. The 25.2 VA rating suits moderate current loads. Consider the chassis mount form factor if panel space allows. Compare against the FP series if PCB mounting is preferred instead. Verify that the dual secondary configuration matches your rectification needs.
Part Context
This component belongs to the F series of industrial control transformers from Triad Magnetics. The series typically includes various voltage and wattage combinations. Similar models like the F-69X offer higher power ratings. The F-43X specifically targets lower voltage applications compared to higher voltage counterparts in the same product line.
Replacement Considerations
The Hammond Manufacturing part number 166N6 serves as a cross-reference substitute. Verify physical dimensions and terminal compatibility before swapping. Ensure the replacement unit meets the same electrical ratings for safety and performance.
