F-44X

Overview

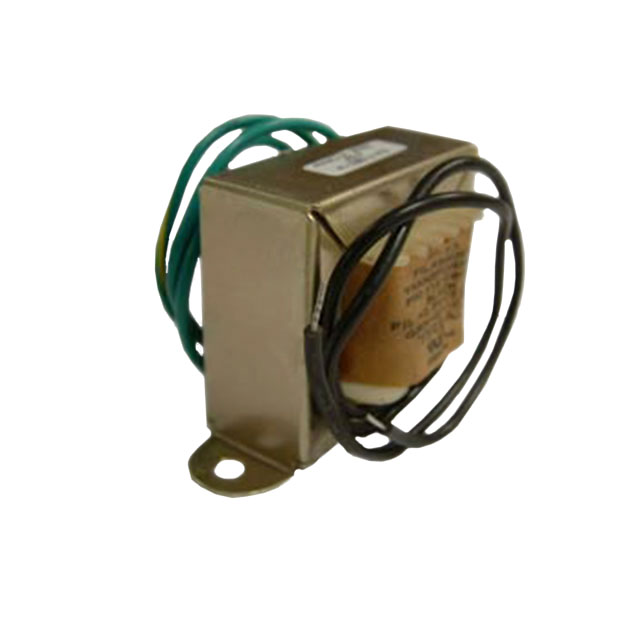

The Triad Magnetics F-44X is an industrial control power transformer designed for chassis mounting with wire leads. It features a laminated core construction and supports dual primary voltages of 115 VAC and 230 VAC. The secondary output provides 12.6 VCT at a current rating of 2.0 A, resulting in a total power rating of 25.2 VA. The unit measures 2 inches in length, 3.31 inches in width, and 1.94 inches in height.

Feature Summary

• Chassis mount design with integrated wire leads for direct circuit connection
• Dual primary voltage capability supporting 115 VAC and 230 VAC inputs
• Laminated core construction for standard industrial power transformation

Applications

• Industrial control panels requiring isolated power supplies
• Equipment needing 12.6 VAC step-down from standard line voltages
• Chassis-mounted electronic assemblies with space constraints

Procurement Notes

Verify the specific datasheet version to confirm insulation class and temperature rise ratings. Ensure the receiving facility has adequate clearance for the 2 x 3.31 x 1.94 inch physical dimensions. Confirm that the wire lead gauge meets the load requirements for the 2.0 A secondary current. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this model when a 25.2 VA capacity is required for low-voltage secondary applications. The dual primary option allows flexibility for international deployment without changing hardware. Consider the chassis mount style if panel drilling is preferred over PCB footprint. Verify that the 12.6 VCT output matches the downstream rectifier or filter circuit design needs.

Part Context

This component belongs to the Triad Magnetics F series of industrial control transformers. The series offers various power ratings and voltage configurations for general-purpose power distribution. The F-44X specifically addresses applications requiring moderate power isolation with standard line input compatibility.

Replacement Considerations

Cross-reference with other Triad Magnetics models in the F series for similar VA ratings. Verify pinout and lead configuration compatibility before substituting with generic equivalents. Ensure replacement units meet the same chassis mounting hole pattern and dimensional envelope.
