F-46X

Overview

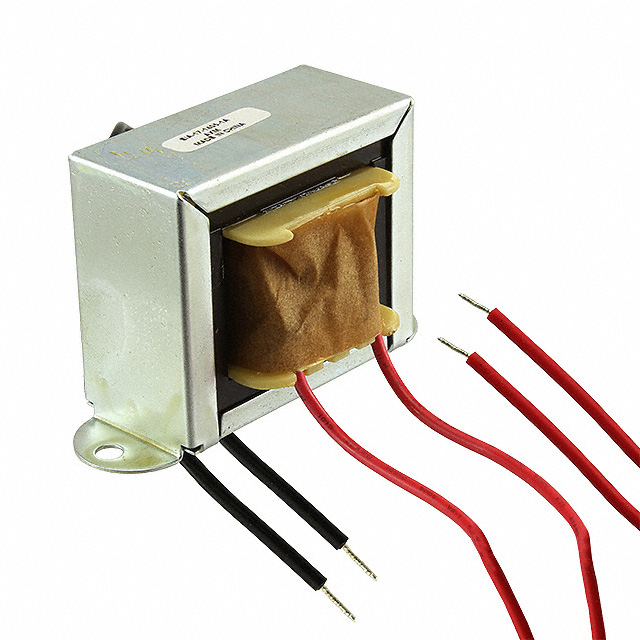

The Triad Magnetics F-46X is a laminated core power transformer designed for chassis mounting. It features a single secondary winding configuration with wire lead terminations. The unit operates with a primary voltage of 115V and provides a secondary output of 24.0V at 1.0A, resulting in a maximum power rating of 24VA. The physical dimensions are 82.55mm in length by 53.97mm in width. The component includes an isolation rating of 1500Vrms and is currently listed as an active part in the manufacturer's series.

Feature Summary

• Laminated core construction for efficient magnetic flux transfer
• Single secondary winding design simplifying circuit integration
• Chassis mount style with wire leads for secure installation

Applications

• Industrial control panel power supplies
• Electronic equipment requiring isolated AC power conversion
• General purpose chassis-mounted power distribution systems

Procurement Notes

Verify that the required input voltage matches the 115V primary specification before procurement. Confirm that the mechanical footprint of 82.55mm x 53.97mm fits the designated chassis space. Ensure the mounting method accommodates the wire lead termination style. Check that the 24V secondary output aligns with the load requirements. Validate compliance with relevant safety standards for the intended application environment.

Selection Notes

Select this model when a dedicated 115V to 24V transformation is needed within a chassis enclosure. Consider the 24VA power limit to ensure adequate capacity for the connected load. Evaluate the chassis mounting requirement against available panel space. Compare the wire lead option against PCB or bracket alternatives if different connection methods are preferred. Assess the thermal performance relative to the ambient operating conditions.

Part Context

This component belongs to the Single Secondary series from Triad Magnetics, focusing on standard industrial power transformation needs. It serves as a fundamental building block for converting mains voltage to lower AC levels. The product line emphasizes reliability through laminated core technology. It targets applications where direct chassis integration is preferred over printed circuit board mounting solutions.

Replacement Considerations

Direct substitutes must match the 24VA rating, 115V primary, and 24V secondary specifications. Verify dimensional compatibility with the existing chassis cutout. Ensure the mounting style remains consistent with chassis installation requirements. Confirm that the wire lead termination type is acceptable for the wiring harness. Cross-reference electrical isolation ratings to maintain safety margins.
