F-55X

Overview

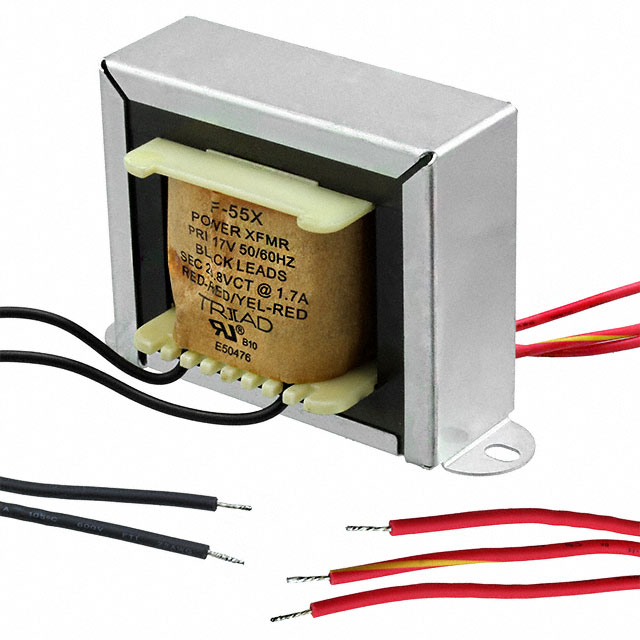

The Triad Magnetics F-55X is a laminated core industrial power transformer designed for chassis mounting. It features a single primary winding rated at 115VAC and a secondary output of 26.8VCT at 1.7A, delivering a total power rating of 45.6VA. The unit includes wire leads for connection and measures 1.5 inches in length, 2.81 inches in width, and 1.63 inches in height. This component serves as a step-down transformer suitable for general industrial control applications requiring stable voltage conversion.

Feature Summary

• Chassis mount construction with integrated wire leads
• Laminated core design for efficient power transformation
• Single primary winding configuration for standard line voltages

Applications

• Industrial control panels
• General purpose power supply circuits
• Equipment requiring 115V to lower voltage step-down

Procurement Notes

Verify the specific datasheet version prior to ordering, as manufacturer specifications may be updated. Confirm that the 115V primary rating aligns with your system's input voltage requirements. Ensure mechanical dimensions fit within the designated chassis space. Check for any recent regulatory compliance updates relevant to industrial transformers in your target market.

Selection Notes

Select this model when a 45.6VA capacity is required for chassis-mounted installations. It is appropriate for designs utilizing 115VAC input sources. Consider the physical footprint of 1.5 x 2.81 x 1.63 inches during PCB or panel layout. Evaluate if the fixed 26.8VCT secondary output meets the downstream circuit's voltage needs without additional regulation.

Part Context

The F-55X belongs to Triad Magnetics' industrial power transformer series. These components are engineered for durability in commercial and industrial environments. The product line emphasizes reliable performance in standard power conversion tasks. Chassis mounting provides stability for heavy-duty applications where vibration resistance is necessary.

Replacement Considerations

Consult official Triad Magnetics documentation for direct cross-reference part numbers. Verify electrical equivalence regarding VA rating, voltage ratios, and current capacity. Ensure mechanical compatibility including mounting style and terminal type before substituting.
