F-56X

Overview

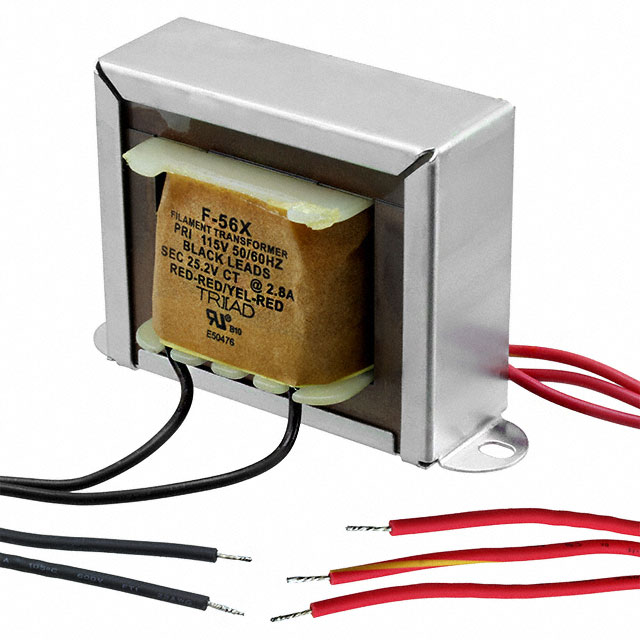

The Triad Magnetics F-56X is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated for 115VAC input and dual secondary windings providing 25.2VAC at 2.8A per winding, resulting in a total power rating of 71VA. The unit utilizes wire leads for electrical connections and offers 1500Vrms isolation voltage between windings. Constructed with standard EI lamination, it supports 50Hz and 60Hz operation frequencies.

Feature Summary

• Chassis mount construction with flange mounting style
• Single primary winding configuration for standard line voltages
• Dual secondary windings supporting parallel or series output configurations
• Wire lead termination type for flexible integration

Applications

• Industrial control panels requiring isolated power supplies
• Audio equipment power stages needing split rail voltages
• General purpose electronic enclosures with chassis mounting requirements
• Test and measurement instrumentation power sections

Procurement Notes

Verify the specific secondary current rating requirements against the datasheet to ensure the 2.8A per winding capacity meets the load demands. Confirm that the chassis mounting dimensions and hole patterns align with the enclosure design. Ensure the operating frequency matches the system's 50Hz or 60Hz supply. Check for any required certifications or compliance standards relevant to the final application environment before ordering.

Selection Notes

Select this component when a robust, high-current laminated transformer is needed for chassis installation. The dual secondary design allows for flexible voltage configuration options compared to single-output models. Consider the physical size constraints as the unit requires adequate clearance for heat dissipation and mounting hardware. Compare against toroidal alternatives if space efficiency is critical, noting the trade-off in weight and volume.

Part Context

This model belongs to Triad Magnetics' industrial power transformer lineup, characterized by durable laminated cores and high current capabilities. It serves as a reliable step-down solution for converting standard line voltages to lower AC levels suitable for downstream rectification and regulation circuits within industrial and commercial electronic systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility carefully when considering alternative manufacturers, ensuring matching VA ratings, voltage outputs, and mounting styles.
