F-6X

Overview

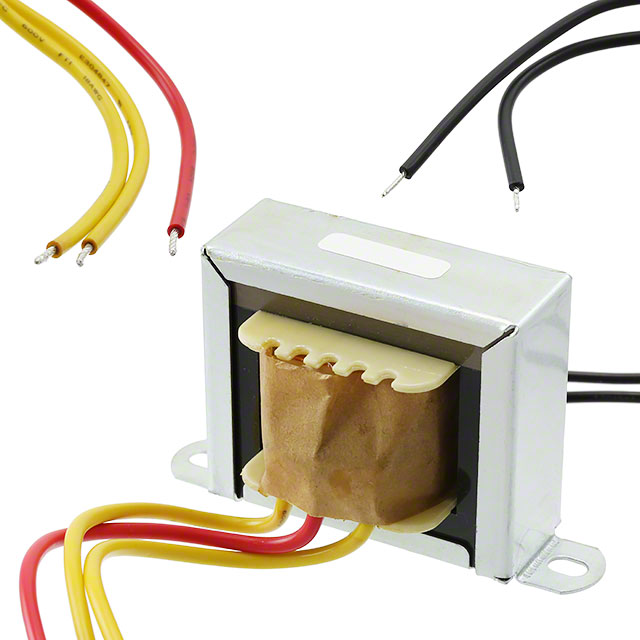

The Triad Magnetics F-6X is a chassis-mount power transformer designed for industrial control applications. It features a laminated core construction with a single secondary winding and dual primary windings to support multiple input voltages. The unit provides an isolation voltage of 1500Vrms and has a power rating of 15VA. Electrical specifications include a primary voltage range of 115/230VAC and a secondary output of 2.5V at 6A. The component utilizes wire leads for termination and is housed in a flange mount style, measuring 2.25 inches in length, 4 inches in width, and 2.281 inches in height.

Feature Summary

• Provides galvanic isolation between primary and secondary circuits for safety
• Supports dual primary voltage inputs for global compatibility
• Utilizes a robust chassis mounting style for secure installation

Applications

• Industrial control panels
• General purpose power supply units
• Electronic equipment requiring isolated low-voltage DC sources

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and exact dimensional tolerances before integration. Ensure that the wire lead lengths meet the enclosure requirements. Confirm that the ambient operating temperature range aligns with the system's thermal design constraints. Cross-reference the pinout configuration with the target circuit board or terminal block layout to prevent wiring errors during assembly.

Selection Notes

Select this model when a compact, high-current 2.5V output is required from standard mains voltages. The dual primary winding allows operation in both 115V and 230V regions without rewiring. Consider the physical dimensions and flange mounting style for mechanical fit within the designated chassis space. Evaluate the 15VA power budget against the total load requirements of the downstream circuitry to ensure adequate headroom.

Part Context

This component belongs to the Triad Magnetics F series of industrial control transformers. These units are characterized by their laminated core design and chassis-mount form factor. The series offers various power ratings and voltage configurations to suit different industrial automation needs. The F-6X specifically addresses applications requiring moderate current at low voltage with reliable electrical isolation.

Replacement Considerations

Consult official manufacturer documentation for direct cross-references. Verify that any substitute part matches the 15VA rating, 2.5V secondary output, and 115/230V primary input capabilities. Ensure mechanical compatibility regarding chassis mounting holes and overall envelope dimensions.
