Product Detailed Parameters
- Description：PWR XFMR LAMINATED 12.6VA CHAS
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：12.6V
- Current - Output (Max)：1A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：12.6VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：84.12mm L x 44.45mm W
- Height - Seated (Max)：49.20mm
- Voltage - Isolation：1500Vrms
- Weight：1.3 lbs (589.7 g)
Download product information
Overview

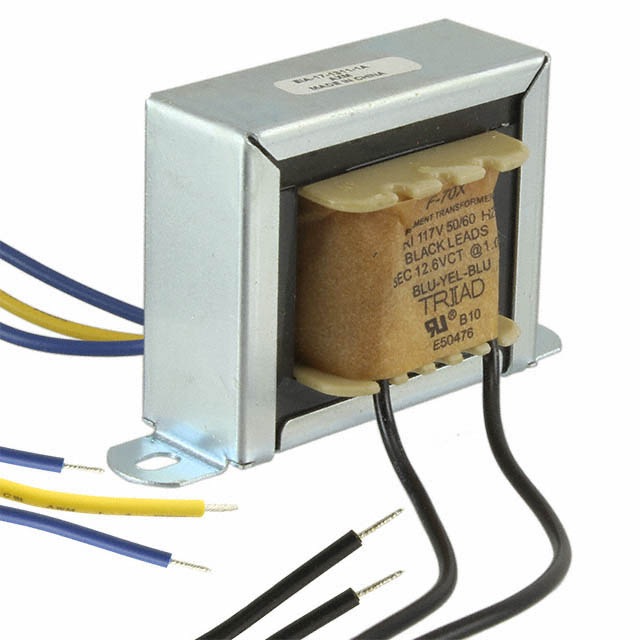

The Triad Magnetics F-70X is a chassis-mount power transformer designed for industrial applications. It features a single primary winding rated at 115V and a single secondary winding providing 12.6V at 1.0A. The unit has a power rating of 12.6VA and operates within a frequency range of 50Hz to 60Hz. Constructed with a laminated core, it utilizes quick connect terminals for installation. The physical dimensions support standard chassis mounting configurations.
Feature Summary
- Chassis mount design for secure industrial installation
- Laminated core construction for efficient power transfer
- Single primary and single secondary winding configuration
- Quick connect terminal type for simplified wiring
Applications
- Industrial control systems requiring isolated power
- Equipment needing 115V to 12.6V step-down conversion
- General purpose power supply isolation circuits
Procurement Notes
Verify the specific datasheet version for the F-70X to confirm terminal style and insulation class requirements. Ensure the application voltage matches the 115V primary rating. Check mechanical clearance against the chassis mount footprint. Confirm compliance with relevant safety standards such as UL or CUL if required by the end product specifications.
Selection Notes
Select this component when a 12.6VA output is sufficient for the load. The 12.6V secondary voltage suits low-voltage control circuits. Consider the chassis mount form factor for fixed installations. Evaluate the 50/60Hz frequency compatibility with the input power source. Compare current ratings against peak load demands to ensure adequate margin.
Part Context
This transformer belongs to Triad Magnetics' general-purpose power transformer lineup. It serves as an isolation device in AC power distribution networks. The F-70X provides electrical separation between primary and secondary circuits. It is commonly used in equipment requiring standardized voltage transformation from mains levels.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout compatibility and thermal characteristics before considering alternative models from other manufacturers.
