F-7X

Overview

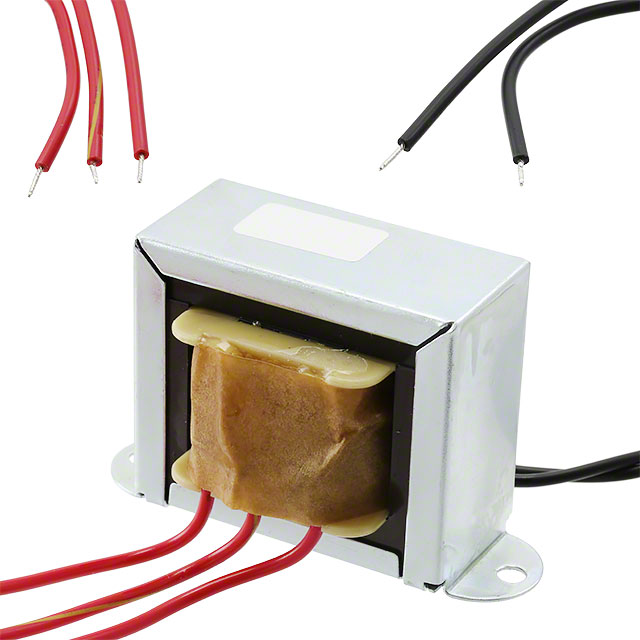

The Triad Magnetics F-7X is an industrial power transformer designed for chassis mounting. It features a single secondary winding providing 5.0V at 3.0A, resulting in a 15VA power rating. The primary winding supports 115VAC operation. Termination is achieved via wire leads. Physical dimensions are approximately 2.25 inches in length, 4 inches in width, and 2.281 inches in height. The unit weighs 1.338 kg.

Feature Summary

• Chassis mount construction with wire lead termination
• Single secondary winding configuration
• Industrial control transformer design

Applications

• Industrial control panels
• Equipment requiring low voltage step-down
• Chassis-mounted power supply circuits

Procurement Notes

Verify the specific suffix or variant against the manufacturer datasheet to ensure compatibility with required voltage and current specifications. Confirm physical mounting hole patterns and lead lengths match the enclosure design. Check RoHS compliance status as indicated in official documentation prior to integration.

Selection Notes

Select this component when a 15VA capacity is sufficient for the load. Ensure the application environment accommodates the specified weight and dimensions. Verify that the 115V primary input matches the available supply voltage. Consider thermal management requirements based on the laminated core construction.

Part Context

This model belongs to the Triad Magnetics F series of industrial control transformers. These units are characterized by laminated core construction and are intended for general-purpose power transformation in industrial settings. The series offers various voltage and current combinations tailored for different equipment needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
