Product Detailed Parameters
- Description：PWR XFMR LAMINATED VARIES CHAS
- Series：Universal
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：10V, 20V, 40V
- Current - Output (Max)：750mA
- Primary Winding(s)：Single, Multiple Taps
- Secondary Winding(s)：Single, Multiple Taps
- Center Tap：No
- Power - Max：Varies
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：63.50mm L x 76.20mm W
- Height - Seated (Max)：76.20mm
- Voltage - Isolation：1500Vrms
- Weight：3.3 lbs (1.5 kg)
Download product information
Overview

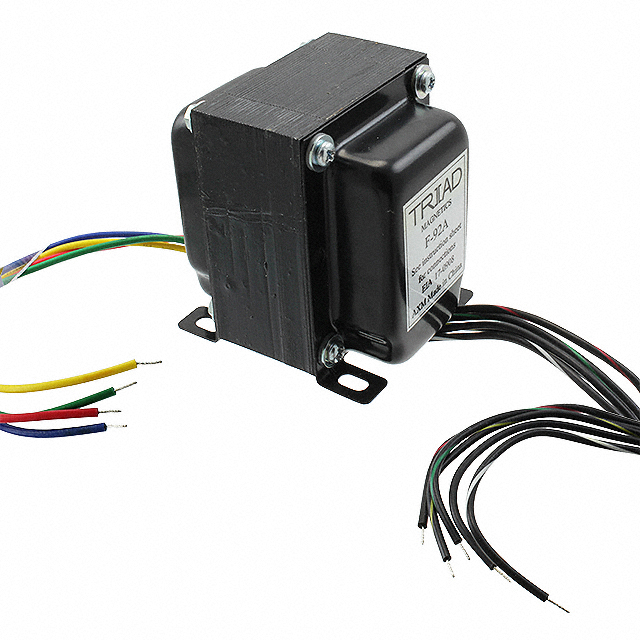

The Triad Magnetics F-92A is a laminated core power transformer designed for chassis-mount applications. It features a universal primary input and converts 115V AC to multiple secondary voltages, specifically providing 7.0V at 40.0V center-tap configuration with a 1.0A rating. The unit has a 72VA power capacity and utilizes wire leads for connection. It is constructed for integration into full-wave center-tap or bridge-type circuits using silicon or selenium rectifiers.
Feature Summary
- Laminated core construction optimized for chassis mounting
- Universal primary voltage compatibility
- Designed for full-wave center-tap or bridge rectifier circuits
Applications
- Full-wave center-tap circuit integration
- Bridge-type rectifier circuit integration
- Chassis-mounted power supply systems
Procurement Notes
Verify the specific datasheet version to confirm electrical tolerances and lead configurations. Ensure the chassis mounting flange dimensions match the enclosure design. Confirm RoHS compliance status if required by project specifications. Cross-reference the secondary voltage ratings against the intended load requirements to ensure adequate current handling capabilities.
Selection Notes
Select this component when a robust, chassis-mountable power transformer is required for industrial or commercial equipment. Consider its 72VA rating and specific secondary voltage outputs for compatibility with existing rectifier topologies. Evaluate the physical footprint and lead length against available space constraints within the target chassis assembly.
Part Context
This part belongs to Triad Magnetics' line of industrial power transformers. These components are engineered for durability and consistent performance in demanding environments. The series typically offers various voltage configurations and mounting options to support diverse power conversion needs across different electronic systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical ratings before considering alternative manufacturers. Consult official Triad Magnetics resources for direct cross-references.
