F-93X

Overview

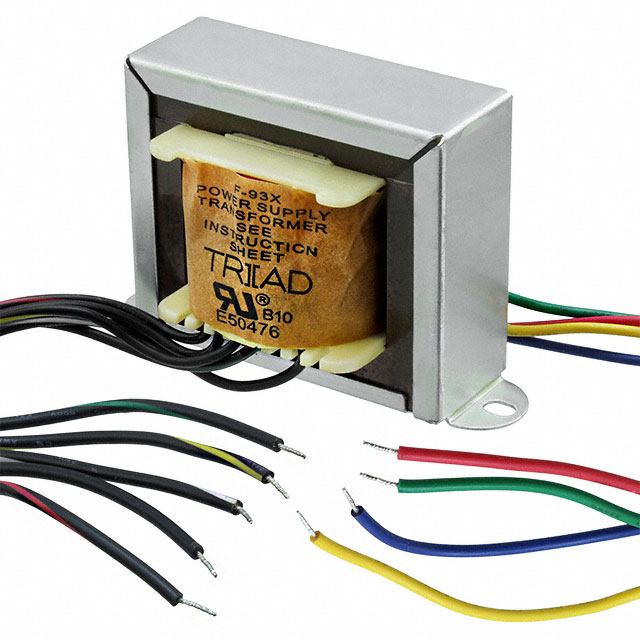

The Triad Magnetics F-93X is an industrial power transformer designed for chassis mounting with wire leads. It features a single primary winding rated for 115 VAC input and a center-tapped secondary output providing 7.0V to 40.0V at 0.750A. The unit has a power rating of 28.5 VA, operates within a temperature range of 0°C to +130°C, and complies with RoHS standards.

Feature Summary

• Chassis mount construction with integrated wire leads for direct circuit connection
• Single primary winding configuration supporting standard 115 VAC line voltage
• Center-tapped secondary output enabling flexible voltage selection between 7.0V and 40.0V
• Industrial control transformer design optimized for high thermal performance up to 130°C

Applications

• Industrial control panel power supplies
• Equipment requiring isolated low-voltage AC sources
• Chassis-mounted electronic systems needing step-down transformation
• General purpose industrial power distribution units

Procurement Notes

Verify the specific secondary voltage requirement against the available 7.0V-40.0Vct range before ordering. Confirm that the chassis mounting style and wire lead termination match your assembly design. Ensure the operating environment stays within the specified 0°C to +130°C thermal limits. Check for any updated regulatory compliance documentation relevant to your region prior to final procurement approval.

Selection Notes

Select this model when a 115VAC input must be stepped down to a variable center-tapped secondary voltage in a chassis-mount form factor. Consider the 28.5 VA power rating to ensure adequate capacity for the load current of 0.750A. Evaluate the physical dimensions and weight constraints against the available space in the enclosure. Compare against other F-series models if different voltage taps or higher power ratings are required.

Part Context

The F-93X belongs to Triad Magnetics' F series of industrial control transformers. This series is characterized by robust chassis-mount designs suitable for demanding environments. The component serves as a fundamental power conversion element in industrial machinery, providing reliable isolation and voltage reduction from standard mains supply to lower operational voltages.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. When evaluating alternatives, prioritize components with matching chassis-mount dimensions, identical 115VAC primary rating, and compatible secondary voltage ranges. Verify that replacement units meet the same thermal and electrical safety standards.
