F-96U

Overview

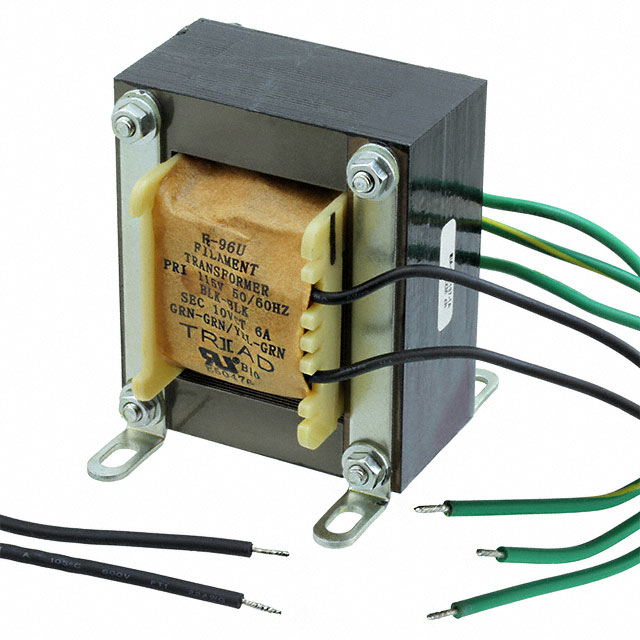

The Triad Magnetics F-96U is a chassis-mount power transformer designed for industrial applications. It features a laminated core construction with wire lead terminations. The unit operates on a 115VAC primary input at 50/60Hz. The secondary output provides 10.0VCT at 6.0A, resulting in a 60VA rating. It includes UL recognition and undergoes 100% hipot testing with 1500V insulation between windings.

Feature Summary

• Chassis mount design with wire leads for direct integration
• Laminated core construction for stable power conversion
• 100% hipot tested for enhanced safety and reliability

Applications

• Industrial control systems
• Commercial equipment power supplies
• General purpose AC to DC rectification circuits

Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer specifications may evolve. Confirm that the 115V primary voltage matches your system requirements. Ensure chassis mounting space accommodates the physical dimensions. Check for any regional shipping restrictions or RoHS status updates prior to ordering.

Selection Notes

Select this component when a robust, high-current 60VA transformer is required for chassis installation. It is suitable for applications needing a 10VCT secondary rail. Consider the physical size and weight constraints of the enclosure. Verify compatibility with existing wiring harnesses due to the wire lead termination style.

Part Context

The F-96U belongs to Triad Magnetics' F series of industrial power transformers. This series is known for long-term field reliability and UL recognized materials. The design utilizes Class B rated components wound on nylon bobbins. It serves as a standard solution for heavy-duty industrial power distribution needs.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
