Product Detailed Parameters

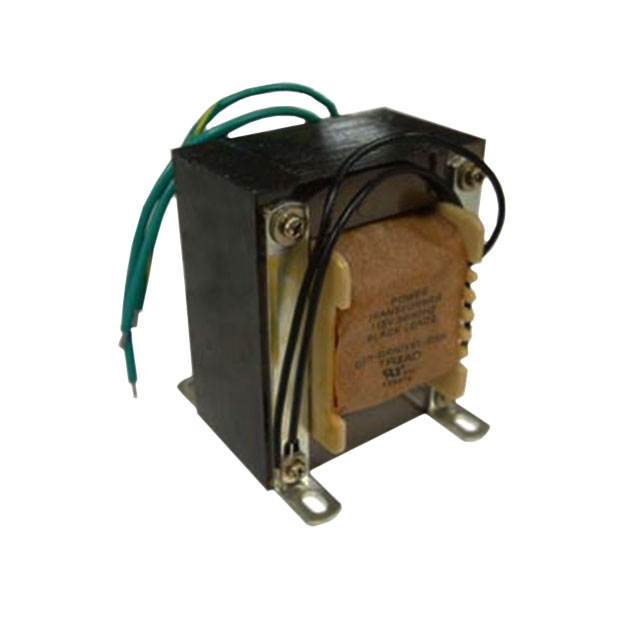

- Description：PWR XFMR LAMINATED 80VA CHAS MT
- Series：Single Secondary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：10V
- Current - Output (Max)：8A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：80VA
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Size / Dimension：71.42mm L x 76.20mm W
- Height - Seated (Max)：87.30mm
- Voltage - Isolation：1500Vrms
- Weight：4 lbs (1.8 kg)
Download product information
Overview
The F-97U is a laminated core power transformer manufactured by Triad Magnetics, designed for chassis mounting with integrated wire leads. It features a single primary winding rated for 115V input and a dual secondary configuration providing a center-tapped 10.0V output at a maximum current of 8.0A. The unit utilizes a robust construction suitable for industrial applications requiring reliable voltage transformation and electrical isolation.
Feature Summary
- Laminated core design for efficient voltage transformation
- Single primary winding with dual secondary element configuration
- Chassis mount style with pre-attached wire leads
Applications
- Industrial power supply systems
- Equipment requiring isolated AC voltage conversion
- Chassis-mounted electronic assemblies
Procurement Notes
Verify the specific voltage ratings and physical dimensions against your system requirements before procurement. Confirm that the wire lead termination style matches your connection infrastructure. Ensure the chassis mounting flanges align with your enclosure specifications to guarantee proper installation and mechanical stability.
Selection Notes
Select this component when a dedicated 115V to 10V center-tapped transformation is required in an industrial setting. The chassis mount form factor suits fixed installations where space constraints allow for larger components. Consider the 8.0A current capacity to ensure it meets the load demands of the downstream circuitry without saturation.
Part Context
This transformer belongs to Triad Magnetics' power transformer lineup, characterized by laminated core technology. It serves as a fundamental isolation component in AC power distribution networks. The model represents a standard industrial solution for stepping down line voltage to lower levels for sensitive electronics.
Replacement Considerations
Substitute parts must match the 115V primary, 10Vct secondary, and 8.0A rating. Verify chassis mount compatibility and lead length. Consult manufacturer cross-reference lists for verified equivalents.
