F10-1200

Overview

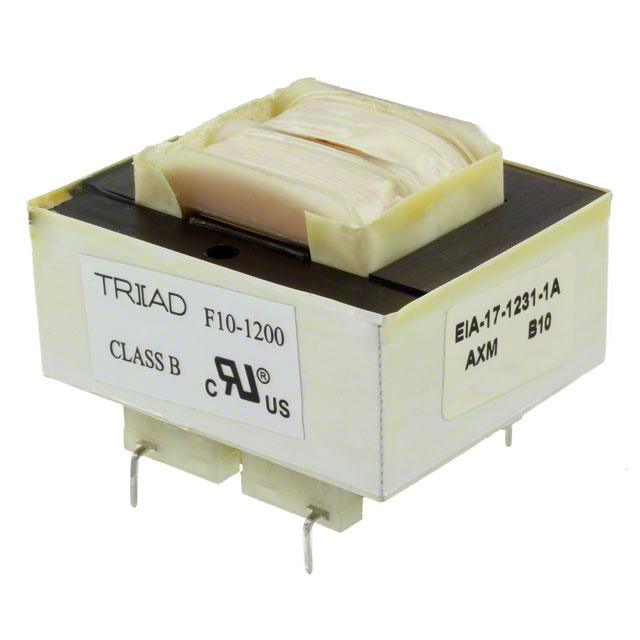

The Triad Magnetics F10-1200 is a split bobbin power transformer designed for PCB mounting. It features a single primary winding rated at 115VAC and a secondary configuration providing 10.0VCT at 1.2A. The unit has a power rating of 12VA with an isolation voltage of 2500Vrms. It utilizes through-hole PC pin termination and complies with UL/cUL standards.

Feature Summary

• Split bobbin construction for enhanced safety isolation
• Compliant with Class 2/3 wiring requirements per UL 5085-3
• Through-hole PCB mounting via solder pins

Applications

• Class 2 or Class 3 low-voltage control circuits
• Industrial equipment requiring isolated power sources
• Consumer electronics utilizing standard AC mains input

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and terminal pitch, as split pack variants may differ. Ensure the procurement specification matches the required 115V primary voltage and 10VCT secondary output. Confirm that the 12VA rating aligns with the load requirements of the target application circuit before ordering.

Selection Notes

Select this component when a compact, board-mount solution is required for isolating low-power control logic from mains voltage. The split bobbin design is critical for applications demanding high creepage and clearance distances. Ensure the operating environment supports the thermal characteristics of a 12VA transformer without forced air cooling.

Part Context

This model belongs to the Triad Magnetics F-series of power transformers. These components are engineered for general-purpose power conversion in space-constrained electronic assemblies. The series offers various voltage configurations while maintaining consistent mechanical footprints for standardized PCB layouts across different product lines.

Replacement Considerations

Direct substitutes include the F10-1200-C2 variant, which shares similar electrical parameters but may differ in packaging or certification details. Verify that any replacement maintains the 2500Vrms isolation rating and 12VA power capacity to ensure system safety compliance.
