Product Detailed Parameters
- Description：PWR XFMR LAMINATED 20VA TH
- Series：Split Pack™
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：Parallel 5V, Series 10V
- Current - Output (Max)：Parallel 4A, Series 2A
- Primary Winding(s)：Single
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：20VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：57.15mm L x 47.63mm W
- Height - Seated (Max)：36.50mm
- Voltage - Isolation：2500Vrms
- Weight：0.8 lb (362.87 g)
Download product information
Overview

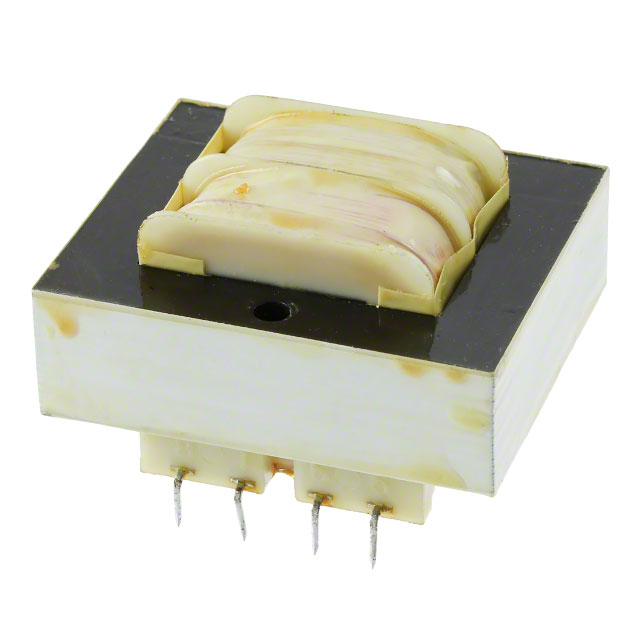

The Triad Magnetics F10-2000 is a laminated core power transformer rated at 20 VA. It features a dual primary winding configuration supporting 115 VAC input and a split secondary design providing 10.0 VCT at 2.0 A and 5.0 V at 4.0 A. The unit utilizes PC pin through-hole termination for PCB mounting. It includes an electrostatic shield between windings and offers 4200 Vrms isolation. The component is UL, cUL, and TUV recognized for industrial control applications.
Feature Summary
- Dual primary winding capability for flexible voltage input
- Split secondary output providing multiple voltage levels
- Electrostatic shielding between primary and secondary windings
- PC pin through-hole termination for board integration
Applications
- Industrial control panels
- Electronic equipment requiring isolated power
- General purpose AC to DC power supplies
Procurement Notes
Verify the specific suffix (e.g., -C2) against the datasheet to confirm terminal configuration and insulation class. Ensure the PCB footprint matches the specified pin spacing. Confirm that the 20 VA rating meets the thermal requirements of the enclosure. Check RoHS compliance status if required by project specifications.
Selection Notes
Select this model when a compact 20 VA transformer with split secondary outputs is required. The dual primary allows operation in regions with different line voltages. The through-hole package suits standard PCB assembly processes. Consider the physical dimensions and weight for mechanical fit within the target chassis or enclosure.
Part Context
This component belongs to the Triad Magnetics International Series, designed for global industrial use. The series emphasizes robust construction and regulatory approvals. The F10-2000 variant specifically targets applications needing versatile secondary voltages from a single compact unit.
Replacement Considerations
Direct substitutes include the F10-2000-C2 variant which shares the same electrical ratings but may differ in terminal style or packaging. Verify pinout compatibility before swapping. Other Triad models in the F-series offer similar VA ratings but require checking voltage and current specifications.
