F10-600-C2

Overview

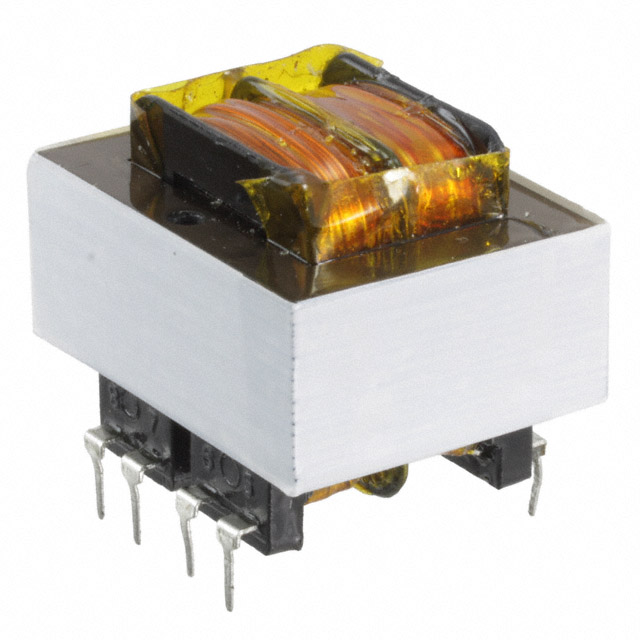

The Triad Magnetics F10-600-C2 is a laminated core power transformer designed for through-hole mounting. It features dual primary windings rated for 115V and 230V operation, providing versatile input compatibility. The secondary configuration includes a center-tapped winding delivering 10V at 0.6A and an additional 5V winding at 1.2A. With a maximum power rating of 6VA, this component offers robust isolation capabilities suitable for various electronic applications requiring reliable voltage transformation.

Feature Summary

• Dual primary winding design supports both 115V and 230V AC input configurations
• Secondary outputs provide 10V center-tapped and 5V independent circuits
• Laminated core construction ensures efficient magnetic coupling
• Through-hole PC pin termination facilitates standard PCB assembly

Applications

• General purpose power supply units
• Industrial control equipment
• Consumer electronics power stages
• Audio amplifier power sections

Procurement Notes

Verify the specific part number F10-600-C2 against official Triad Magnetics documentation to confirm current availability and lead times. Ensure that the required electrical parameters, including voltage ratings and current capacities, align with your circuit design specifications before finalizing procurement decisions.

Selection Notes

Select this transformer when a 6VA capacity is sufficient for the application's power requirements. Consider the physical dimensions of approximately 41.28mm by 33.32mm to ensure adequate board space. Verify that the through-hole mounting style matches the target printed circuit board layout and manufacturing processes.

Part Context

This component belongs to the F10 series of power transformers from Triad Magnetics. The series is characterized by split pack construction and compliance with Class 2/3 safety standards. These transformers are engineered for general-purpose applications where reliable isolation and standard voltage transformations are required in compact form factors.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other series without confirming electrical and mechanical specifications match exactly.
