F1150AA10

Power Line Filter Modules Overview

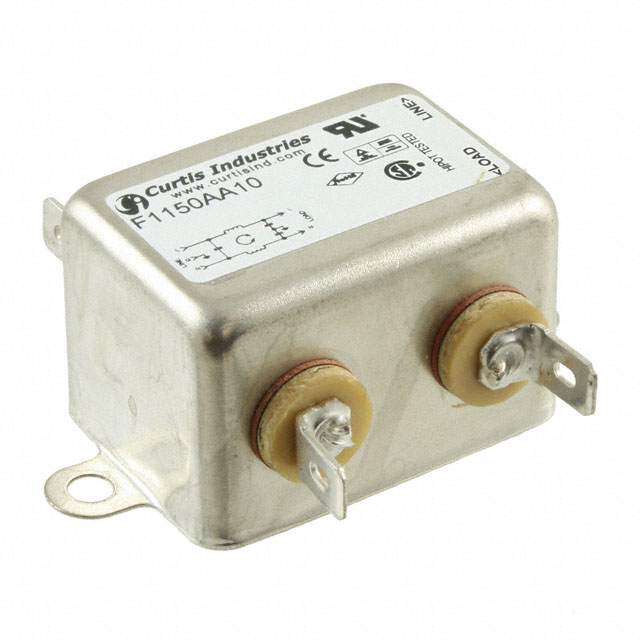

The Curtis Industries F1150AA10 is a single-phase, single-stage EMC/EMI power line filter module designed for chassis mounting. It features a robust construction suitable for industrial applications. The unit operates at a voltage rating of 250VAC and handles a current capacity of 10A at 50/60Hz frequencies. Termination is achieved via quick connect terminals, facilitating integration into electrical systems requiring noise suppression.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount design for secure installation
• Quick connect termination style

Power Line Filter Modules Applications

• Industrial equipment noise suppression
• Power line filtering for sensitive electronics
• General purpose EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for precise dimensional tolerances and thermal derating curves before finalizing the design. Confirm that the quick connect terminal dimensions match the mating connector specifications in your assembly to ensure reliable electrical contact and mechanical stability during operation.

Power Line Filter Modules Selection Notes

Select this component when single-stage attenuation is sufficient for the application's interference profile. Ensure the operating environment remains within the specified voltage and current limits. Consider the physical footprint constraints of the chassis mount configuration relative to available space in the enclosure layout.

Power Line Filter Modules Part Context

This model belongs to the Curtis F1150 series of power line filters. The series offers various configurations for single-phase applications. The AA10 designation specifically indicates the 10A current rating and 250VAC voltage class within this product family, distinguishing it from higher or lower rated variants.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for direct cross-references. Verify that any substitute part matches the 10A current rating, 250VAC voltage rating, and quick connect termination style to maintain system compatibility without redesigning the mounting or wiring infrastructure.
