F12-1000-C2
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：PWR XFMR LAMINATED 12VA TH
- Series：Split Pack™, Class 2/3, F
- Mfr：Triad Magnetics
- Package：Tube
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：Parallel 6.3V, Series 12.6V
- Current - Output (Max)：Parallel 2A, Series 1A
- Primary Winding(s)：Single
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：12VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：47.63mm L x 39.67mm W
- Height - Seated (Max)：36.50mm
- Voltage - Isolation：4200Vrms
- Weight：0.7 lb (317.51 g)
Download product information
Overview

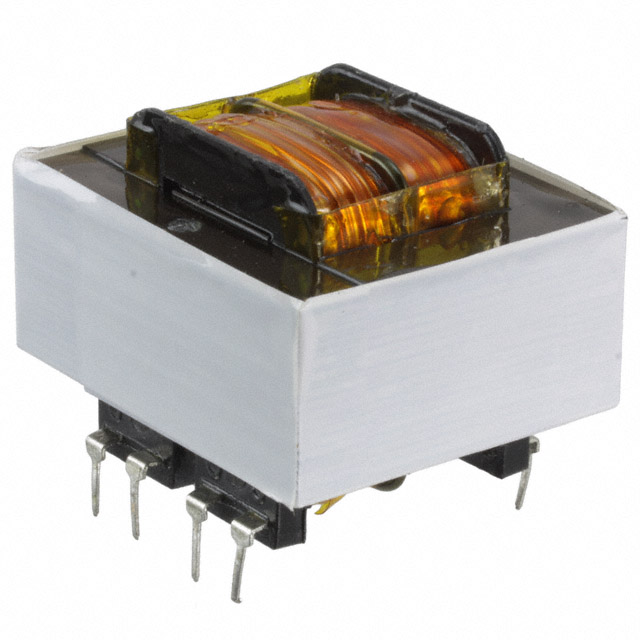

The Triad Magnetics F12-1000-C2 is a Class 2/3 power transformer designed for PCB mounting. It features a single primary winding rated at 115 VAC and dual secondary windings providing 12.6 VCT at 1.0 A and 6.3 V at 2.0 A. The unit has a 12 VA power rating and 4200 Vrms isolation voltage. Dimensions are 47.63 mm length, 39.68 mm width, and 36.49 mm height.
Feature Summary
- Class 2/3 safety compliance for low-voltage applications
- Split Pack bobbin construction for versatile PCB integration
- Dual secondary output configuration for flexible circuit design
Applications
- Low-voltage electronic equipment requiring Class 2 isolation
- Audio signal processing circuits
- Control panel power supplies
Procurement Notes
Verify the specific suffix C2 against the manufacturer datasheet to confirm terminal configuration and insulation class requirements. Ensure the 115 VAC primary input matches the target system voltage. Confirm that the physical footprint dimensions align with the printed circuit board layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a 12 VA power rating is sufficient for the load. The dual secondary outputs allow for simultaneous supply of different voltage levels. Verify that the through-hole mounting style fits the assembly process. Check thermal operating limits if the application involves high ambient temperatures.
Part Context
This part belongs to the F12 series of Split Pack transformers from Triad Magnetics. These components utilize a laminated core structure optimized for standard PCB mounting. The series provides reliable isolation for various industrial and consumer electronics applications requiring certified low-power transformation.
Replacement Considerations
Consult official Triad Magnetics documentation for direct cross-references. No public substitute part numbers are confirmed in the provided source material.
