F1200DD20

Power Line Filter Modules Overview

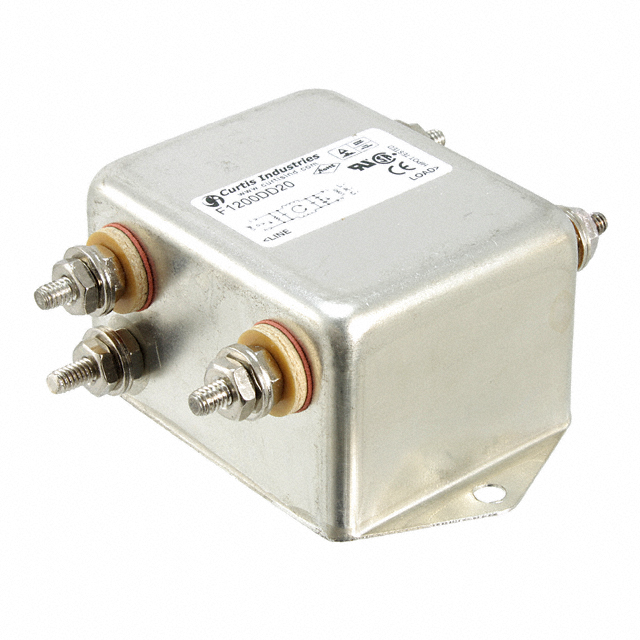

The Curtis Industries F1200DD20 is a single-phase EMC/EMI power line filter module designed for industrial applications. It features a rated current of 20 A and operates at voltages up to 250 VAC within the 50/60 Hz frequency range. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference. Mechanical mounting is achieved via threaded posts with an 8-32 thread specification, facilitating secure integration into equipment chassis or panels.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Threaded post mounting interface
• Single-stage attenuation design

Power Line Filter Modules Applications

• Industrial motor control cabinets
• Power supply input stages
• Electronic equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'DD20' against the manufacturer's current datasheet to confirm terminal configuration and voltage ratings. Ensure the 8-32 threaded post spacing matches the host panel cutout dimensions. Confirm that the 20 A continuous current rating aligns with the system load requirements before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for systems operating at 250 VAC. The 20 A rating suits moderate-power industrial loads. The threaded post termination style is appropriate for high-vibration environments where screw terminals may loosen. Verify compatibility with existing panel mounting hardware.

Power Line Filter Modules Part Context

This model belongs to the Curtis F1200 series of single-phase power line filters. The series offers various current ratings and termination options. The F1200DD20 specifically denotes the 20 A variant with threaded post connections. This series is engineered for general-purpose EMI suppression in commercial and industrial electrical systems.

Power Line Filter Modules Replacement Considerations

Consult the official Curtis Industries replacement guide for direct equivalents. Verify that any substitute maintains the 20 A current rating and 250 VAC voltage limit. Ensure mechanical compatibility with the 8-32 threaded post mounting style to avoid panel modification.
