F1250AA06

Power Line Filter Modules Overview

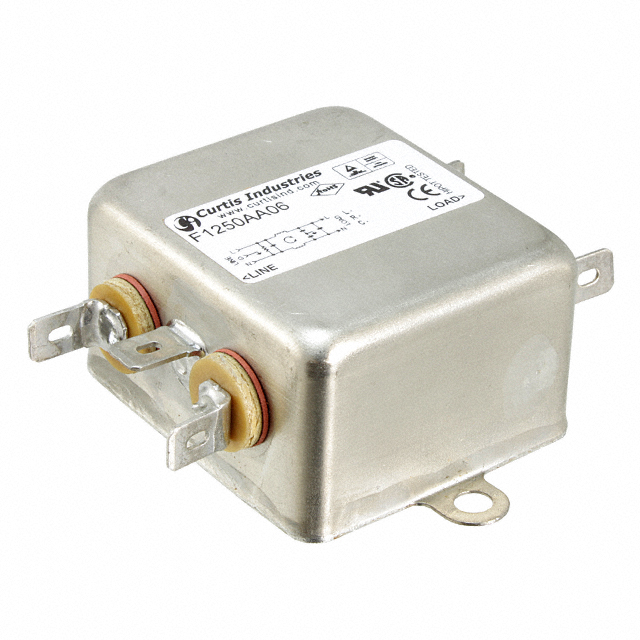

The Curtis Industries F1250AA06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current capacity of 6A at 50/60Hz frequencies. The component utilizes a quick connect termination style for circuit integration. This single-stage filter is intended to suppress electromagnetic interference in power lines, ensuring compliance with emission standards while maintaining signal integrity in connected electrical systems.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction for stable installation
• Quick connect termination for simplified wiring

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Commercial machinery noise suppression
• Electrical control panel filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number F1250AA06 against official Curtis Industries documentation to confirm active status and exact ratings. Ensure compatibility with 250VAC and 6A requirements. Check datasheet for precise dimensional tolerances and termination pin configurations before procurement to avoid integration errors.

Power Line Filter Modules Selection Notes

Select this model when single-phase filtering is required for chassis-mounted applications. Confirm that the 6A current rating and 250VAC voltage limit align with system specifications. Evaluate the quick connect termination style against available PCB or wire harness interfaces to ensure mechanical and electrical compatibility during design.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1250 series of power line filters. The series offers various current ratings and voltage options for different industrial needs. The F1250AA06 specifically addresses higher current requirements within the 250VAC range, providing a standardized solution for EMI suppression in commercial and industrial power distribution networks.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Generic replacements may not match the specific insertion loss characteristics or physical dimensions of the F1250AA06. Verify that any substitute maintains the same single-phase configuration and quick connect termination style.
