F141448RTGV

Overview

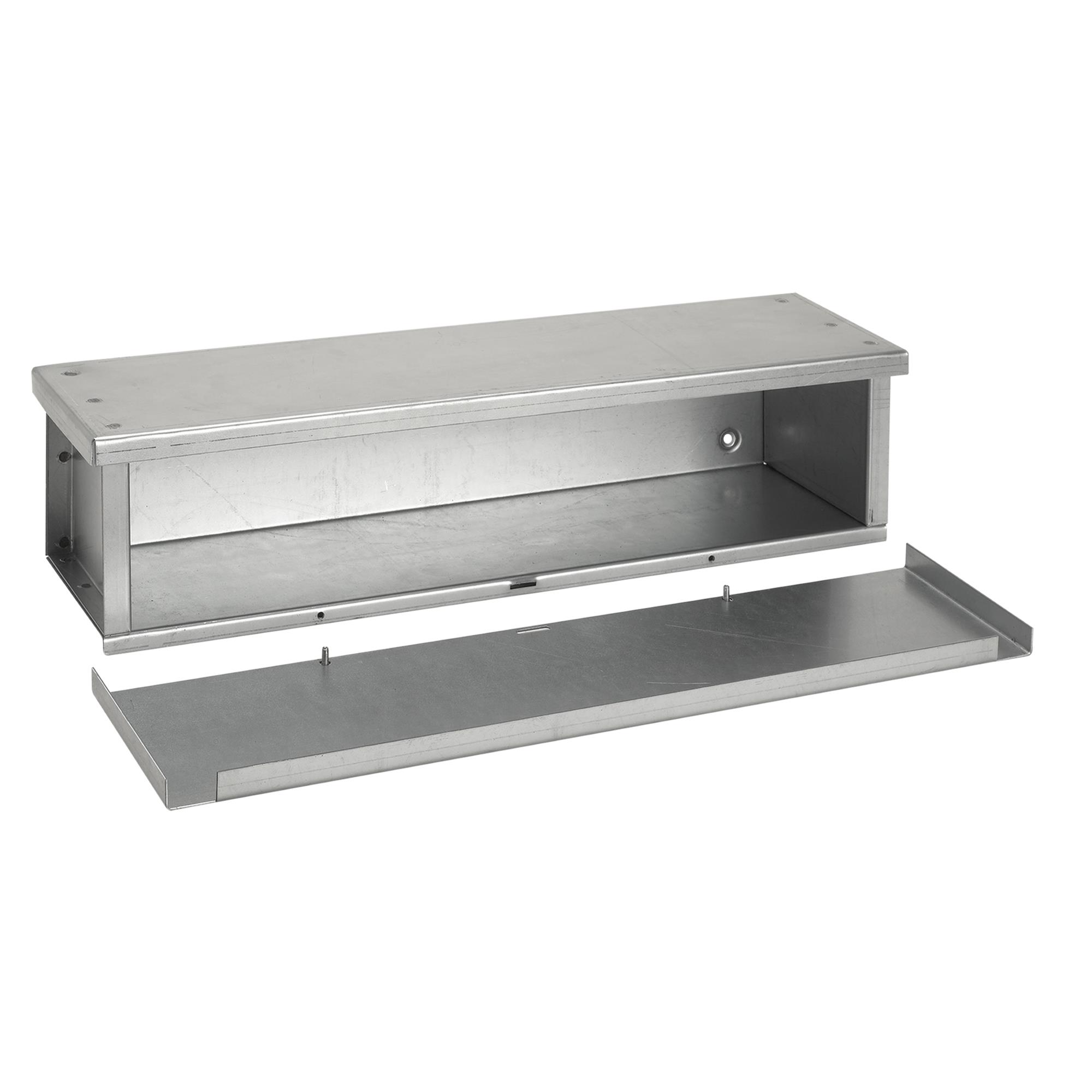

The Hoffman Enclosures F141448RTGV is a Type 3R basic galvanized wiring trough constructed from 14-gauge steel. It features dimensions of 14.00 inches in length, 14.00 inches in width, and 48.00 inches in height. The enclosure provides NEMA 3R and IP32 protection ratings, suitable for outdoor-indoor applications. It carries UL 870, CUL, and CSA C22.2 approvals.

Feature Summary

• Galvanized steel construction with drip-shield top cover on side, front, and back
• Embossed mounting holes located on the back panel for secure installation
• Provision included for utility seal integration

Applications

• Power distribution systems
• Outdoor wiring management
• Indoor wiring management

Procurement Notes

Verify that the specific project requirements align with the Type 3R rating and 14-gauge material specification. Confirm that the absence of gasketing or pre-drilled knockouts meets the installation needs. Ensure compatibility with required utility seals and mounting hardware before finalizing procurement decisions.

Selection Notes

Select this model when a robust, galvanized steel trough is needed for managing wires in environments requiring Type 3R protection. The 14-gauge thickness offers structural durability. Consider that it lacks integrated gaskets or knockouts, requiring separate sourcing for sealing and cable entry solutions if not provided by other system components.

Part Context

This component belongs to the Hoffman Econo Trough series designed for wire management. It serves as a fundamental infrastructure element for organizing electrical cabling in industrial settings. The galvanized finish ensures resistance against environmental corrosion, distinguishing it from non-treated steel alternatives within the same dimensional category.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
