F16-150

Overview

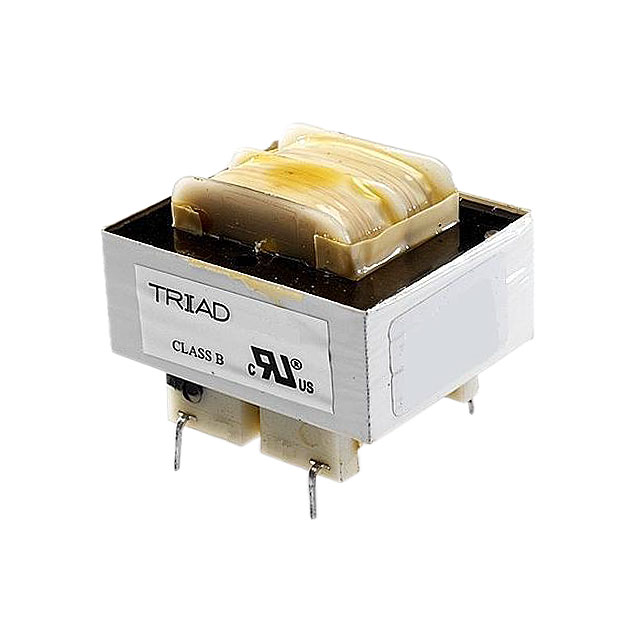

The Triad Magnetics F16-150 is a laminated core power transformer with a 2.5VA rating, designed for through-hole mounting. It features a single primary winding rated for 115V operation and dual secondary windings configured to provide either parallel 8V at 300mA or series 16V at 150mA. The unit incorporates a split bobbin construction and offers 2500Vrms isolation voltage. Dimensions are approximately 34.93mm in length, 28.58mm in width, and 30.15mm in maximum installation height.

Feature Summary

• Split bobbin design facilitates versatile printed circuit board integration
• Dual secondary windings allow flexible parallel or series voltage configuration
• Laminated core construction ensures stable low-voltage power transformation

Applications

• Low-power electronic equipment requiring isolated AC-to-AC conversion
• Audio amplifier circuits utilizing split secondary configurations
• Industrial control systems needing compact board-mount transformers

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm electrical characteristics, as variations exist within the FS16 family. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering. Ensure the selected variant matches the required primary voltage and secondary current specifications for the target application.

Selection Notes

Select this component when a compact, board-mount solution is required for low-power applications. The split bobbin design supports efficient PCB layout. Verify that the 2.5VA power rating meets the load requirements. Consider the physical dimensions and pin configuration to ensure compatibility with the intended enclosure and circuit board footprint.

Part Context

This component belongs to the Split Pack™ series of power transformers from Triad Magnetics. These units are engineered for general-purpose power supply applications where space constraints necessitate a compact form factor. The series utilizes laminated cores to maintain performance while minimizing size.

Replacement Considerations

Triad Magnetics part number 164E16 is listed as a cross-reference equivalent.
