F1700AA03

Power Line Filter Modules Overview

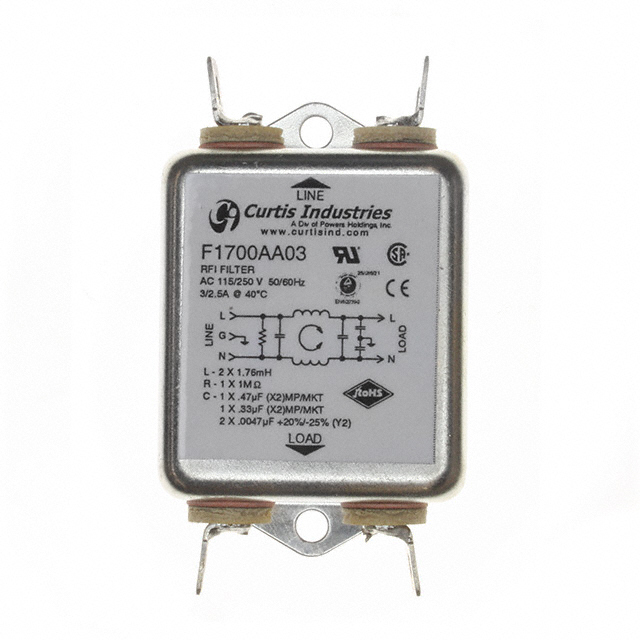

The Curtis Industries F1700AA03 is a single-phase EMI/RFI line filter module designed for power line noise suppression. It features a current rating of 3 A and a voltage rating of 250 VAC at 50/60 Hz. The unit utilizes quick connect terminations for both input and output lines, facilitating rapid integration into electrical assemblies. Constructed for chassis mounting, the filter provides high-performance attenuation with line-to-line capacitance four times higher than the Series F1200. Leakage current ranges from 0.40 to 0.75 mA, ensuring compliance with safety standards while maintaining effective signal integrity in sensitive electronic environments.

Power Line Filter Modules Feature Summary

• Single-stage EMC/EMI filtering architecture for general-purpose RFI suppression
• High-performance design featuring quadrupled line-to-line capacitance compared to Series F1200
• Quick connect termination style enables efficient wiring without soldering
• Chassis mount configuration supports secure installation in industrial enclosures

Power Line Filter Modules Applications

• Single-phase power line noise suppression in electronic equipment
• EMC/EMI mitigation in industrial control systems
• General-purpose RFI filtering for sensitive instrumentation

Power Line Filter Modules Procurement Notes

Verify that the required termination style matches the quick connect specification. Confirm chassis mounting compatibility with the target enclosure dimensions. Ensure the operating environment does not exceed the 250 VAC and 3 A ratings. Check for specific leakage current requirements against the 0.40 to 0.75 mA range. Validate that the single-phase configuration aligns with the system power distribution design.

Power Line Filter Modules Selection Notes

Select this component when single-phase EMI suppression is required for circuits operating up to 3 A. The quick connect interface suits applications prioritizing assembly speed over permanent soldering. Consider the higher capacitance relative to Series F1200 if greater attenuation is necessary. Ensure the chassis mount form factor fits the available panel space. Verify that the leakage current characteristics meet the specific safety regulations of the end application.

Power Line Filter Modules Part Context

This model belongs to the Curtis Industries F1700 series of high-performance EMI filters. The series focuses on single-phase power line conditioning using compact modules. These units are engineered for robust noise reduction in demanding environments. The F1700AA03 specifically addresses applications requiring reliable RFI suppression with straightforward connectivity options.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the F1700 series may offer different current or voltage ratings. Compare termination styles carefully, as quick connect interfaces vary by pin configuration. Evaluate leakage current specifications to ensure compatibility with sensitive ground references. Verify physical dimensions for chassis mounting compatibility before substitution.
