F1700AA06

Power Line Filter Modules Overview

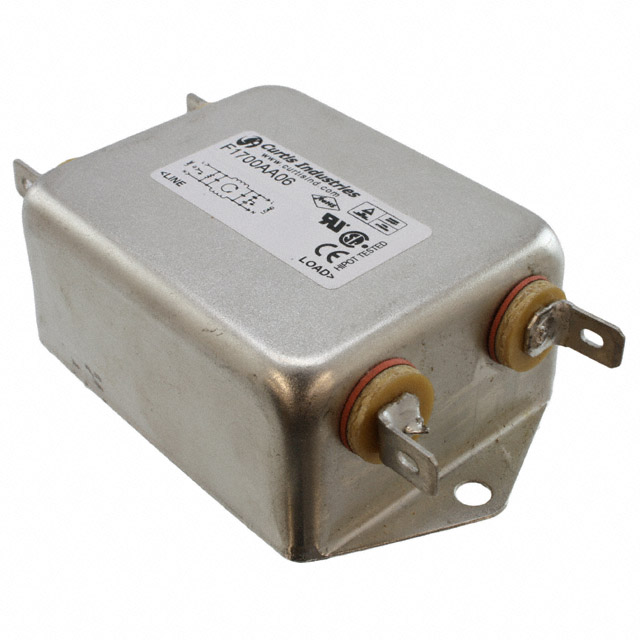

The Curtis Industries F1700AA06 is a single-phase EMC/EMI power line filter module designed for AC applications. It features a rated voltage of 250VAC and operates at frequencies of 50/60Hz. The component supports a current rating of 4A at 250VAC and 6A at 115VAC. Internally, it utilizes an inductance configuration of two times 0.516 mH. The unit employs quick connect terminals for circuit integration.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Quick connect terminal interface for rapid assembly
• Dual inductor internal architecture

Power Line Filter Modules Applications

• AC power line filtering
• EMC compliance in electronic equipment
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify availability status as the part may be discontinued or limited stock. Confirm RoHS compliance requirements against specific project standards, as this model is noted as non-compliant in some sources. Ensure the operating environment matches the 250VAC and 50/60Hz specifications before procurement.

Power Line Filter Modules Selection Notes

Select this component when single-stage EMI filtering is required for AC mains inputs. The dual inductor design provides specific attenuation characteristics suitable for general industrial noise reduction. Verify that the quick connect termination style aligns with the PCB or harness layout constraints of the target application.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1700 series of RFI filters. These modules are engineered for power line conditioning and noise suppression. The series typically offers various current ratings and voltage configurations to suit different AC power distribution needs within electronic assemblies.

Power Line Filter Modules Replacement Considerations

Check for alternative models within the F1700 series or other Curtis EMC modules if this specific part number is unavailable. Ensure any substitute maintains the same 250VAC rating and comparable inductance values to preserve circuit performance.
