F1700BB10

Power Line Filter Modules Overview

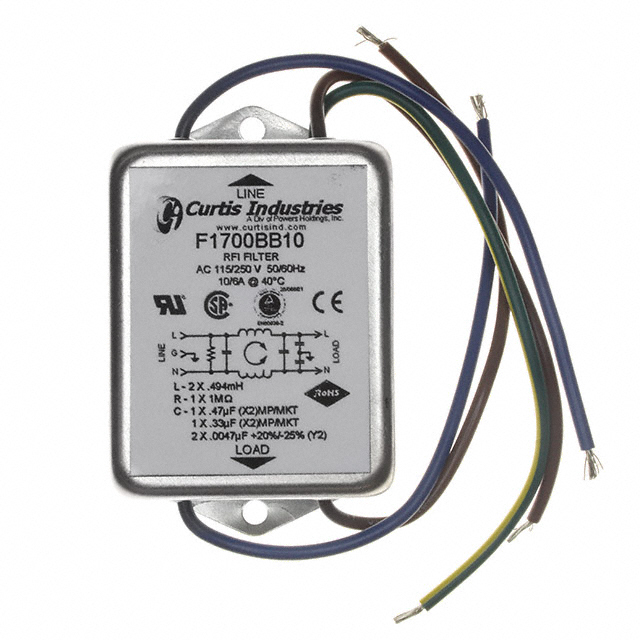

The F1700BB10 is a single-phase EMI/EMI line filter module manufactured by Curtis Industries. It features a chassis mount design with wire leads for both input and output connections. The component is rated for a maximum voltage of 250VAC at 50/60Hz frequencies. It supports a rated current of 10A. The unit complies with RoHS standards and exhibits a leakage current range between 0.40 mA and 0.75 mA.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference filtering architecture
• Chassis mounting configuration with integrated wire leads
• RoHS compliant construction

Power Line Filter Modules Applications

• Industrial equipment power entry points
• Medical device power supplies
• Commercial machinery EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific suffix BB10 against the official Curtis Industries datasheet to confirm terminal type and lead length specifications. Ensure the chassis mount footprint matches the installation panel requirements. Confirm that the 10A current rating aligns with the system's operational load and that the 250VAC voltage rating is suitable for the local mains frequency.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, high-performance RFI filter is required for chassis-mounted applications. The wire lead termination simplifies integration into custom enclosures without additional connectors. Consider the leakage current limits if the application involves sensitive patient contact or strict safety isolation requirements. Verify thermal management needs for continuous 10A operation.

Power Line Filter Modules Part Context

This part belongs to the F1700 series of single-phase filters from Curtis Industries. The series includes variants such as F1700AA10 and F1799 models, which share similar performance characteristics but may differ in mounting style or terminal configuration. The F1700 series is designed for general-purpose and high-performance noise suppression in AC power lines.

Power Line Filter Modules Replacement Considerations

Cross-reference with other F1700 series variants like F1700AA10 for alternative mounting options. Verify compatibility with F1799 series components if different schematic configurations are needed. Ensure any substitute maintains the 10A rating and 250VAC specification.
