F1780DD20

Power Line Filter Modules Overview

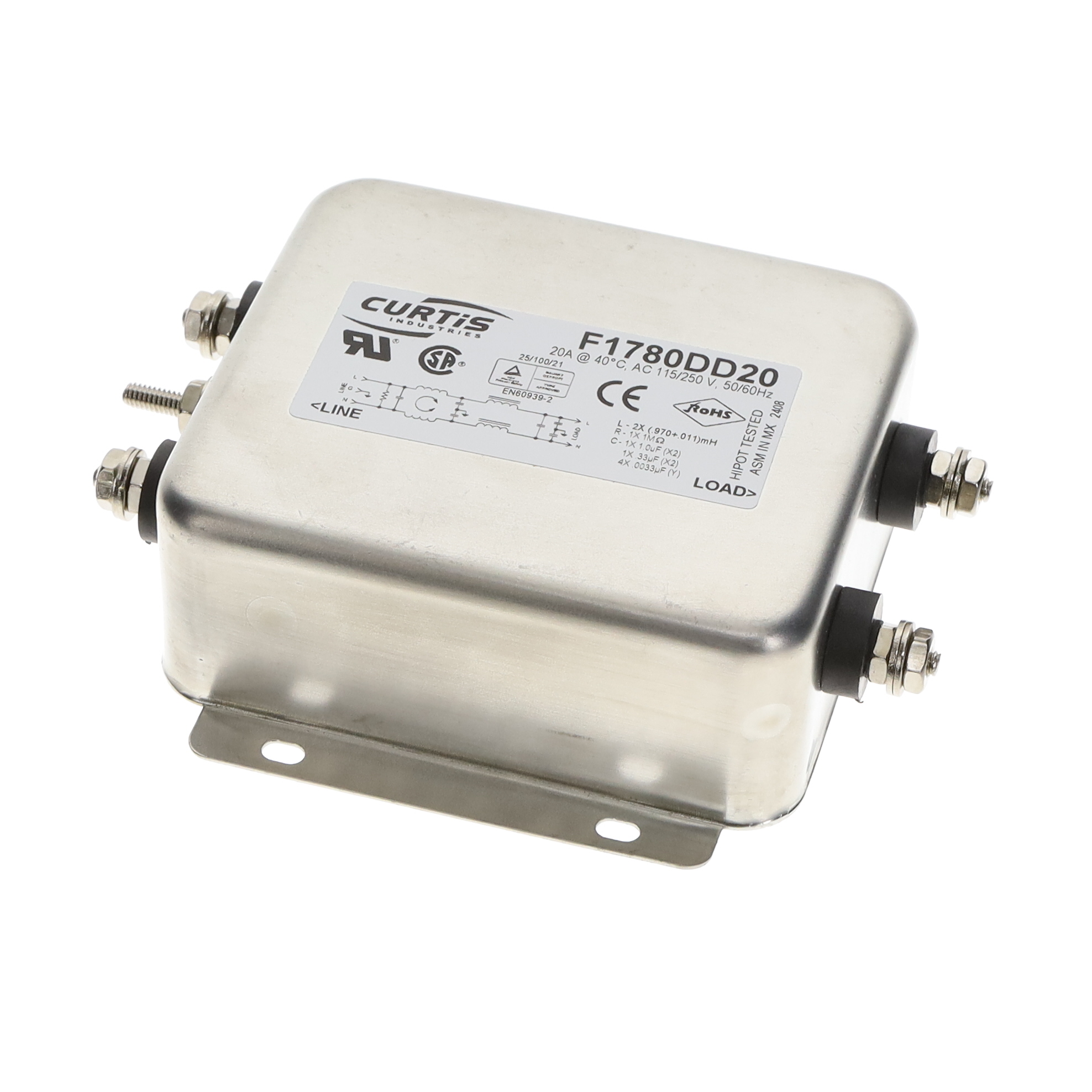

The F1780DD20 is a single-stage EMI/EMC power line filter module manufactured by Curtis Industries. It features a rated voltage of 250 VAC at 50/60 Hz and supports a continuous current of 20 A. The device utilizes screw terminals for both line and load connections, ensuring secure electrical interfaces. Designed for chassis mounting, it incorporates common mode and differential mode filtering capabilities to mitigate electromagnetic interference in AC power circuits.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering architecture
• Screw terminal termination for input and output lines
• Chassis mount physical configuration
• Common and differential mode noise suppression

Power Line Filter Modules Applications

• Industrial equipment power supply protection
• Medical device EMC compliance
• Test and measurement instrumentation filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and leakage current specifications (typically 0.5 to 1 mA) against your system requirements. Confirm that the chassis mounting dimensions and screw terminal torque values align with your enclosure design. Ensure the 20 A current rating meets peak load demands without derating issues.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for attenuation requirements. Compare leakage current limits against safety standards applicable to your end product. Verify that the 250 VAC rating matches the local mains voltage infrastructure. Consider thermal management needs given the 20 A current capacity.

Power Line Filter Modules Part Context

This model belongs to the Curtis Industries F1780 series of high-performance RFI power line filters. The series offers various current ratings and terminal configurations. The F1780DD20 specifically denotes the 20 A variant with screw-to-screw termination, distinguishing it from lower current or different termination style options within the same family.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as F1100DD20 for similar 20 A performance. Verify compatibility with existing PCB layouts or chassis cutouts if substituting. Ensure equivalent leakage current and insertion loss characteristics are maintained for regulatory compliance.
