F1827CAH1200

Overview

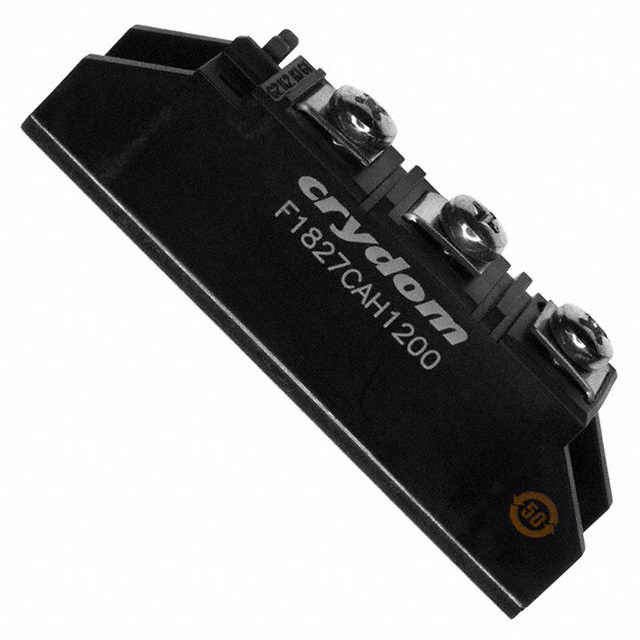

The F1827CAH1200 is a discrete semiconductor module manufactured by Sensata under the Crydom brand. It belongs to the F18 series and utilizes silicon technology. The component is configured as an SCR-Diode module with a current rating of 25A and a voltage rating of 480VAC. It features screw mount installation and weighs 135 g.

Feature Summary

• Integrated SCR and Diode configuration within a single discrete semiconductor module
• Designed for high-voltage AC applications up to 480VAC
• Utilizes silicon-based semiconductor technology

Applications

• Industrial power control systems
• High-voltage AC switching circuits
• Solid-state relay assemblies

Procurement Notes

Verify availability status carefully, as this specific part number is listed as discontinued in public records. Confirm if replacement modules from the same F18 series are suitable for existing designs. Check datasheet revisions for any parameter updates before finalizing procurement plans.

Selection Notes

Select this module when a combined SCR and Diode solution is required for 480VAC systems. Ensure the design accommodates the 25A current rating and 135 g weight. Verify that screw mount mounting methods align with the system's mechanical constraints and thermal management requirements.

Part Context

This component is part of the F18 series of discrete semiconductor modules produced by Sensata-Crydom. The series includes various configurations for power electronics. This specific model integrates both thyristor and diode functions into one package for efficient circuit design.

Replacement Considerations

Public records indicate this part is discontinued. Consider alternative modules within the F18 series or similar SCR-Diode configurations from Sensata-Crydom that match the 25A and 480VAC specifications.
