F1857SD600

Overview

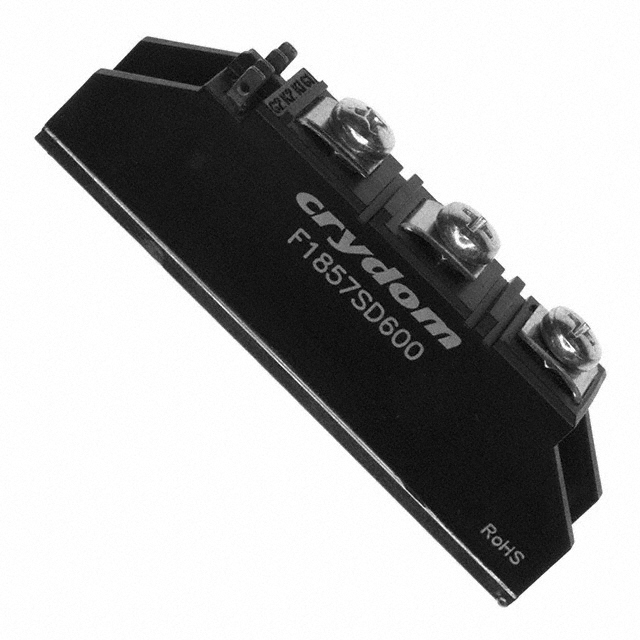

The F1857SD600 is a silicon SCR module from the Crydom F18 series, manufactured by Sensata. It features a reverse voltage of 600 V and a forward voltage of 1.4 V. Designed for screw mount installation, it operates within a temperature range of -40°C to +125°C. The component weighs 135 g and is classified as a discrete semiconductor module.

Feature Summary

• Utilizes silicon technology for robust power switching
• Provides high thermal stability across a wide operating temperature range
• Features a screw mount configuration for secure mechanical attachment

Applications

• Industrial power control systems
• High-voltage rectification circuits
• Solid-state motor control applications

Procurement Notes

Verify the exact part number against official documentation, as the provided input model differs slightly from the verified F1857SDK600. Confirm availability status, as this specific module may be discontinued or subject to limited distribution channels. Ensure compatibility with existing mounting hardware and thermal management requirements before procurement.

Selection Notes

Select this module when a 600 V rated SCR is required for industrial applications. Verify that the 55 A current rating and 1.4 V forward voltage align with system design constraints. Ensure the screw mount style matches the available board space and cooling infrastructure.

Part Context

This component belongs to the Crydom F18 series of discrete semiconductor modules. The series is designed for general-purpose power switching applications requiring reliable performance in industrial environments. The manufacturer, Sensata, produces these components under the Crydom brand.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Sensata-Crydom documentation for cross-reference information.
