F1892DH1200

Overview

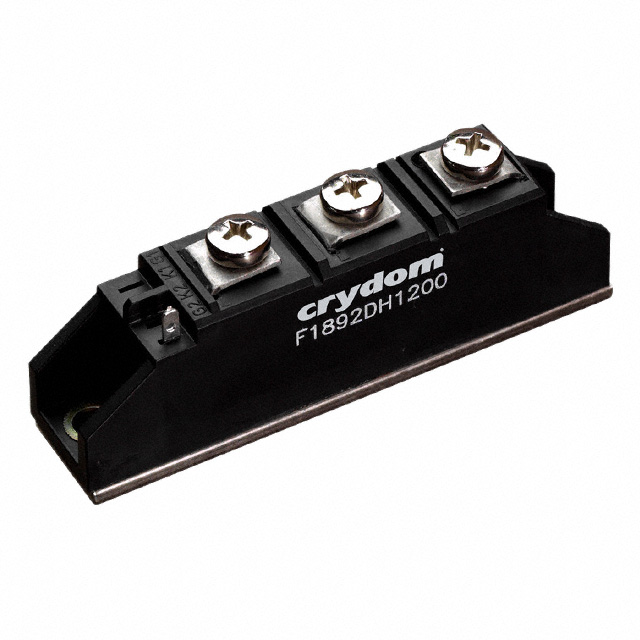

The F1892DH1200 is a silicon SCR module from the F18 series, manufactured by Sensata-Crydom. It features a series connection of one SCR and one diode housed in a chassis mount module package. The device supports a peak off-state voltage of 1.2 kV and a maximum gate trigger voltage of 3 V. It operates within a junction temperature range of -40°C to +125°C. The component utilizes standard bulk packaging with a manufacturer standard quantity of five units per pack.

Feature Summary

• Series-connected SCR and diode configuration for controlled power switching
• Chassis mount design for robust industrial integration
• Silicon construction ensuring reliable high-voltage performance

Applications

• Industrial motor control systems
• Power supply rectification circuits
• Solid state power switching applications

Procurement Notes

Verify the specific datasheet version before procurement, as Sensata-Crydom may update specifications over time. Confirm that the chassis mount interface matches your thermal management requirements. Ensure the 1.2 kV rating aligns with your circuit's peak voltage demands. Check for any recent product change notices regarding the F18 series components.

Selection Notes

Select this module when a combined SCR and diode solution is required in a single package. The 1.2 kV rating suits medium-to-high voltage AC applications. Consider the chassis mount style for efficient heat dissipation compared to insulated options. Verify gate trigger parameters against your control circuit capabilities.

Part Context

This component belongs to the F18 series of solid state power switching modules. The series offers various configurations including all-SCR and mixed SCR-diode arrangements. These modules are designed for heavy-duty industrial environments requiring high reliability and robust electrical characteristics.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided documentation.
