F1892DH600

Overview

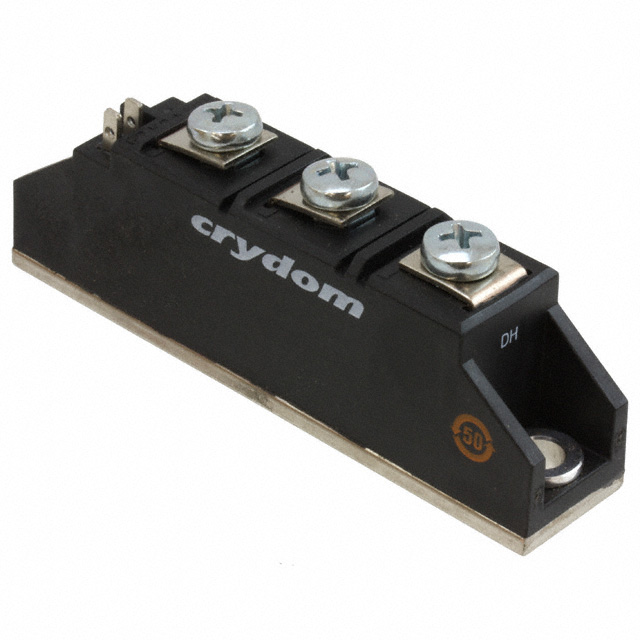

The Sensata-Crydom F1892DH600 is a silicon SCR-Diode module from the F18 series. It features a single-phase bridge configuration with a 90 A load current rating and a 600 V reverse voltage. The device utilizes screw mounting for electrical connections and operates within a temperature range of -40°C to +125°C.

Feature Summary

• Integrates a thyristor and diode in a single-phase bridge structure
• Utilizes faston connectors combined with screw mounting for secure electrical attachment
• Constructed using silicon technology for robust power switching

Applications

• Industrial motor control systems
• Power supply rectification circuits
• Resistive load switching applications

Procurement Notes

Verify component authenticity through authorized Sensata-Crydom distributors or certified partners. Confirm RoHS compliance status prior to integration. Ensure storage conditions align with manufacturer guidelines to maintain semiconductor integrity. Validate datasheet revisions against specific project requirements before finalizing procurement orders.

Selection Notes

Select this module for high-current DC applications requiring reliable phase control. The 90 A rating suits heavy-duty industrial loads. Verify thermal management capabilities match the system's heat dissipation design. Ensure gate trigger current specifications align with the driving circuit's output capacity for proper operation.

Part Context

This component belongs to the F18 series of discrete semiconductor modules manufactured by Sensata-Crydom. The series focuses on SCR and diode configurations designed for demanding power electronics environments. These modules are engineered for durability and consistent performance in industrial-grade equipment.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Consult official Sensata-Crydom resources for potential cross-reference alternatives.
