F1892RD1200

$136.30

Description：DIODE MODULE GP 1200V 90A MODULE
Series：-

SKU:1476dcbf63dc Category: Diode Arrays Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F1892RD1200 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is DIODE MODULE GP 1200V 90A MODULE. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for F1892RD1200

Description：DIODE MODULE GP 1200V 90A MODULE
Series：-
Mfr：Sensata-Crydom
Package：Bulk
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1200 V
Current - Average Rectified (Io) (per Diode)：90A (DC)
Voltage - Forward (Vf) (Max) @ If：1.4 V @ 270 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：-
Operating Temperature - Junction：-40°C ~ 125°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Diode Arrays datasheet and documents for F1892RD1200

F1892RD1200

Diode Arrays Overview

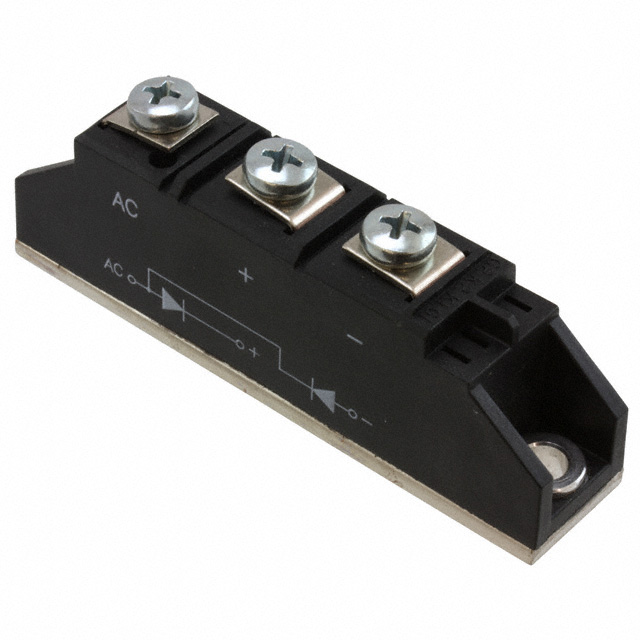

The F1892RD1200 is a discrete semiconductor module manufactured by Sensata-Crydom, classified under SCR-Diode Modules. It utilizes Silicon technology and features a dual-diode circuit configuration within an industry-standard package. The component supports screw mount installation and operates within a temperature range of -40°C to +125°C TJ. Key electrical parameters include a repetitive peak reverse voltage of 1200V (1.2kV) and a maximum DC output current of 90A at 85°C. The forward voltage drop is specified at 1.4V.

Diode Arrays Feature Summary

Dual-diode power module configuration for high-current applications
Industry-standard package design for versatile integration
Silicon-based construction ensuring robust thermal performance

Diode Arrays Applications

Industrial power control systems
AC/DC power conversion circuits
High-voltage rectification modules

Diode Arrays Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to procurement, as manufacturing specifications may evolve. Confirm that the screw mount interface matches your mechanical assembly requirements. Ensure the 1200V reverse voltage rating aligns with your system's peak operational limits. Check for any recent product change notifications regarding the Sensata-Crydom F18 series. Validate that the 90A current rating suffices for your thermal management design.

Diode Arrays Selection Notes

Select this module when a dual-diode topology is required for high-voltage rectification up to 1200V. The 90A continuous current capability suits heavy-duty industrial loads. Consider the screw mount style for secure connections in high-vibration environments. Evaluate the -40°C to +125°C operating range against your ambient conditions. Compare the 1.4V forward voltage drop against efficiency requirements in your power stage design.

Diode Arrays Part Context

This component belongs to the Crydom F18 series of power modules, which are designed as building blocks for various power control applications. The series offers multiple circuit configurations, including SCR and diode combinations, housed in standardized packages to simplify design-in processes across different industrial sectors.

Diode Arrays Replacement Considerations

Publicly confirmed substitute part numbers for the F1892RD1200 were not identified in the provided source material. Verify compatibility with alternative dual-diode modules from other manufacturers if direct replacements are unavailable.
